Prefabricated Steel Structure Livestock Farming House Chicken Coop

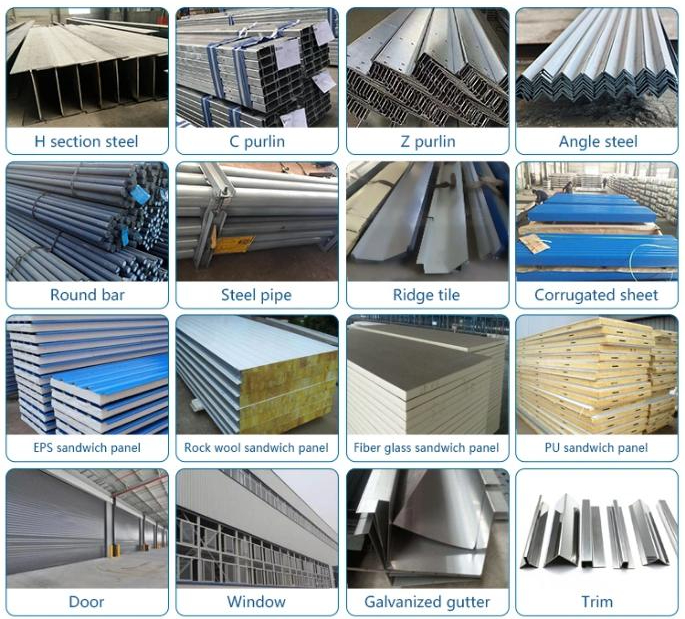

1.) Materials Detail of Steel Structure Livestock Farming House
| Item | Material | Description and surface process | |
| Main steel frame | Column and Beam | Q235 or Q345 | H section steel with two coats of mid-gray paint |
| Purlin | Q235 or Q345 | Galvanized C or Z type steel | |
| Connecting Pieces | Tie tube | Q235 | Circular Tube with two coats of mid-gray paint |
| Knee-Bracing | Q235 | L50*4 Galvanized angle steel | |
| Strutting piece | Q235 | φ12*2.5 Galvanized Circular Tube | |
| Column Bracing | Q235 | Circular Tube with two coats of mid-gray paint | |
| Horizontal Bracing | Q235 | Circular Tube with two coats of mid-gray paint | |
| Casing | Q235 | φ30*2.5 Galvanized Circular Tube |
| Door and Window | Item | Description | |
| Door | Roller shutter door or Sliding door | ||
| Window | PVC Window or aluminum alloy window | ||
| Other parts | Ventilating device | Fan,Ventilation window | |
| Bolt | Foundation bolt,High strengthen bolt, Normal bolts | ||
| Skylight | Yx-840 Glass Fiber Reinforced Plastics | ||
| Out/Inner ridge tile | 0.50mm Color sheet | ||
| Crane beam | Q235 or Q345 H section steel with two coats of mid-gray paint | ||
| Panel Material parts | (1). External Wall panel: (below is selectable) |
| 1) 50mm, 75mm or 100mm thickness EPS sandwich panel | |
| 2) 50mm, 75mm or 100mm thickness glass wool sandwich panel | |
| 3) 50mm, 75mm or 100mm thickness Rockwool sandwich panel | |
| 3) 900# Corrugated Galvanized Steel sheet with different Color | |
| 4) Kinds of PVC wall panel. | |
| (2). Internal Wall panel: (below is selectable) | |
| 1)50mm, 75mm or 100mm thickness EPS sandwich panel | |
| 2) 50mm, 75mm or 100mm thickness glass wool sandwich panel | |
| 3) 50mm, 75mm or 100mm thickness Rockwool sandwich panel | |
| (3). Roofing panel: (below is selectable) | |
| 1)50mm, 75mm or 100mm thickness EPS sandwich panel | |
| 2) 50mm, 75mm or 100mm thickness glass wool sandwich panel | |
| 3) 50mm, 75mm or 100mm thickness Rockwool sandwich panel | |
| 3)Corrugated Steel Sheet, an insulating layer if need. | |
| 4)Corrugated PVC roof panel. | |
| (4). Skylight: 820# Glass Fiber Reinforced Plastics (FRP) |

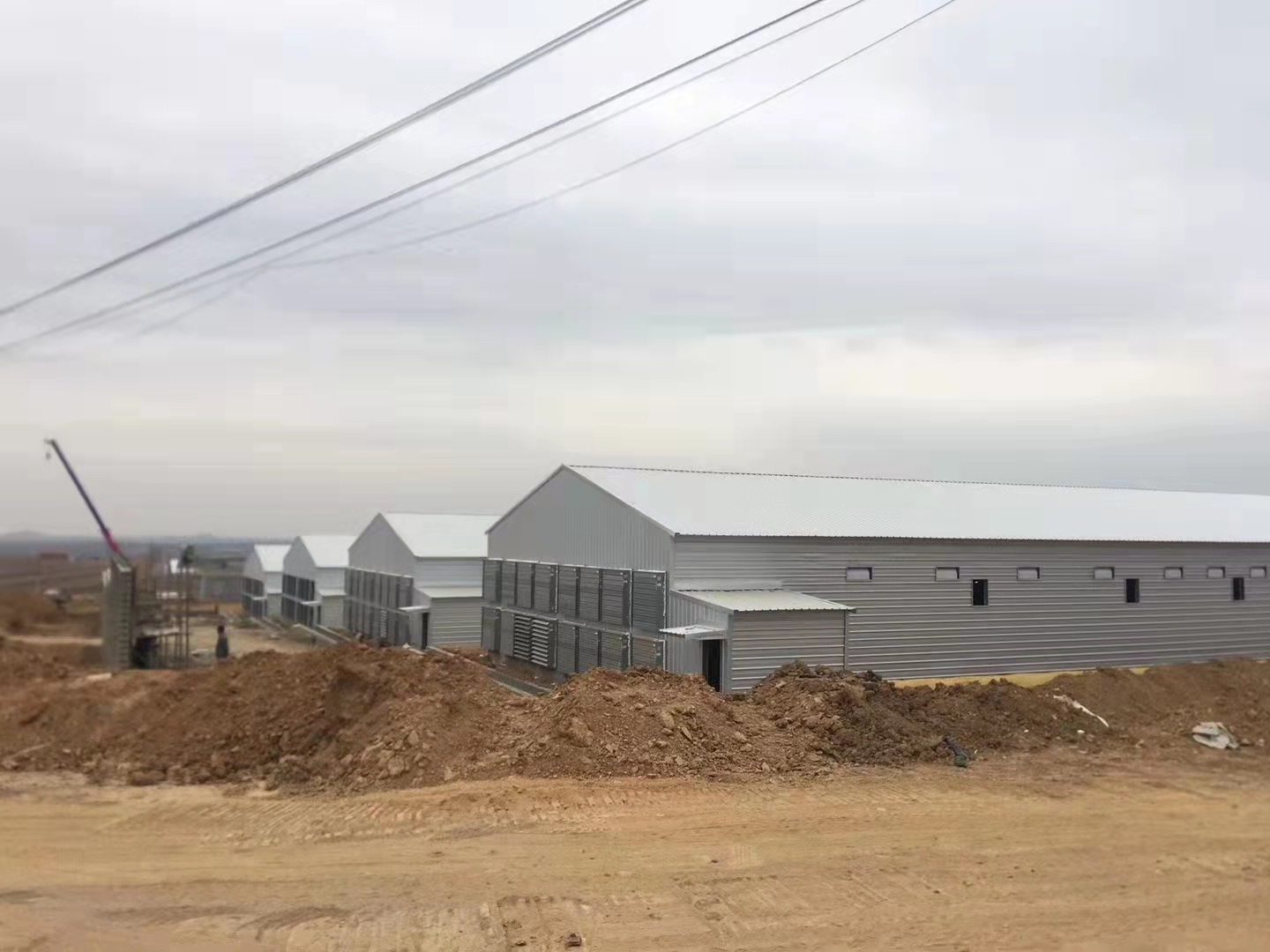

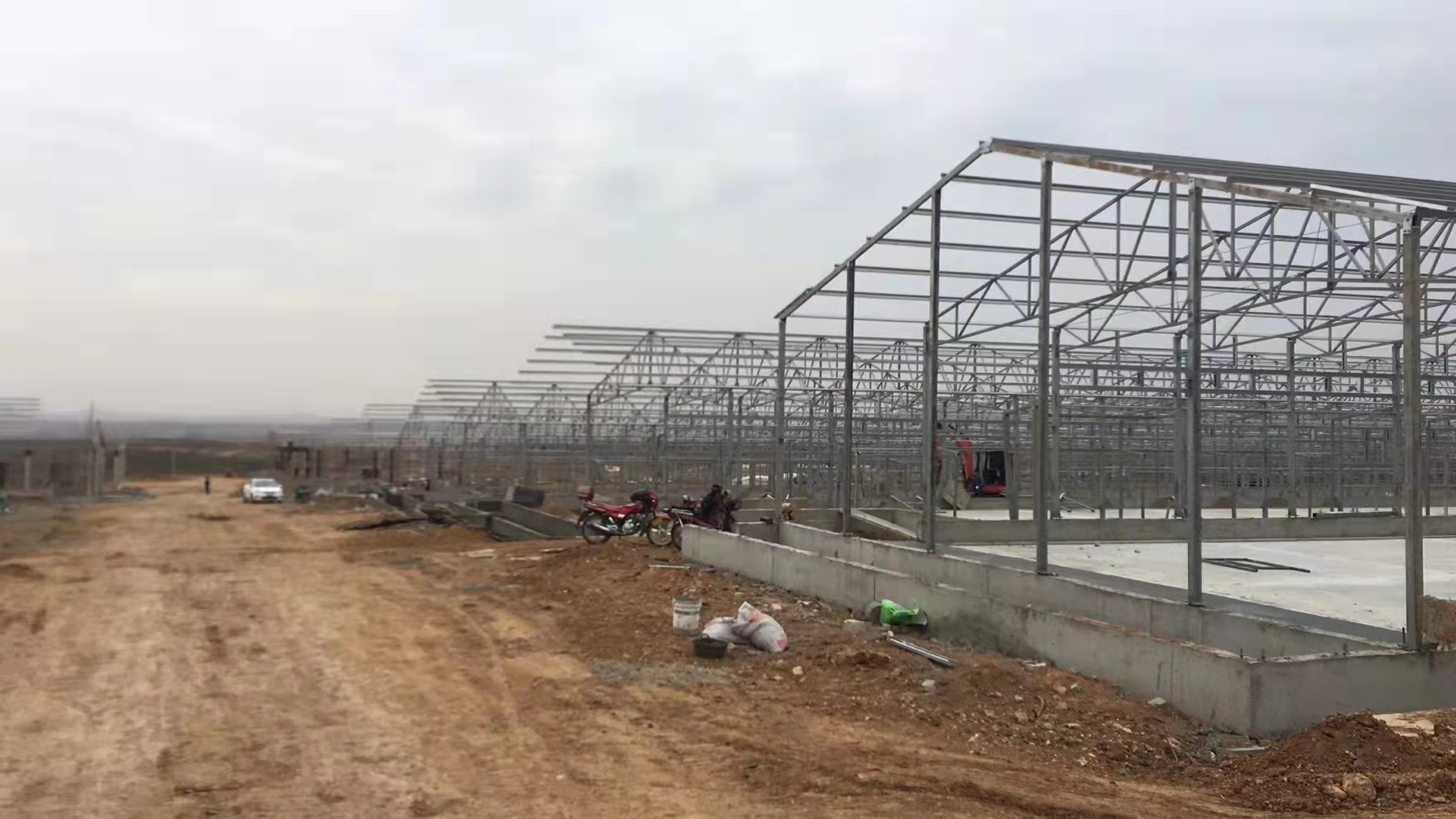

2.) Detailed Images of Steel Structure Livestock Farming House
Steel Structure Livestock Farming House
(2) Application
Poultry House,Warehouse, temporary office/building, gymnasia, villa, mobile building, guard booth, wall & roof materials for steel building or structure.
3.) Packaging & Shipping
4) Market

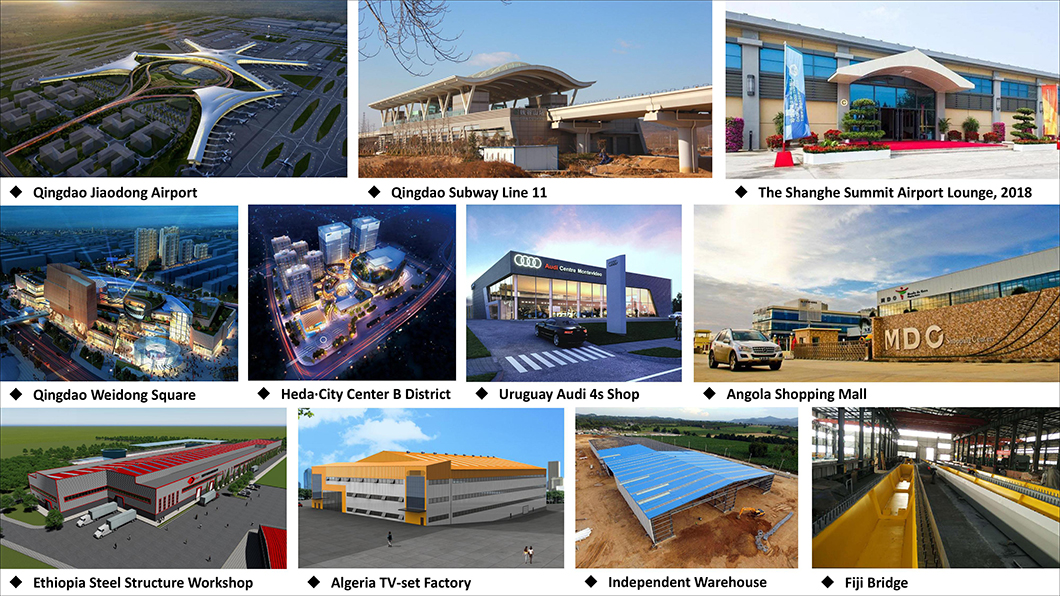

Partial List of Steel Structure Projects
| No. | Project Name | Building Type |
| 1 | Qingdao New Airport Comprehensive Transportation Center and Parking Building Engineering Steel Pipe Column | Truss |
| 2 | Qingdao Blue Silicon Valley Crossing Bridge Steel Structure Engineering | Truss |
| 3 | Uganda in the Ethiopian Medical Park | Door-style Steel Structure |
| 4 | Qatar Logistics Park | Door-style Steel Structure |
| 5 | Dubai Workshop | Door-style Steel Structure |
| 6 | Qingdao Xinuo Co., Ltd Workshop | Door-style Steel Structure |
| 7 | Qingdao Xinxiu Logistics Park 1#, 2#, 3#, 4#, 5# warehouse workshop | Door Steel/Frame |
| 8 | Shandong Oruijin Packaging Project Co., Ltd. Annual production of 1 billion aluminum two-piece cans | Truss |
| 9 | Zhenghe Industrial Co., Ltd. Agricultural Machinery Chain Workshop | Door-style Steel Structure |
| 10 | Qingdao Henry Furniture Co., Ltd. 4#, 5# Workshop Engineering | Frame |
| 11 | Qingdao Thunder Heavy Industry Co., Ltd. Metallurgical Automatic Transmission Equipment Assembly Base Project | Heavy steel lattice column |
| 12 | Qingdao East Asia Industrial Co., Ltd. Integrated Plant Project | Door-style Steel Structure |
| 13 | Qingdao Yujintian Renewable Resources Co., Ltd. 3#, 4# Steel Structure Workshop Engineering | Frame |
| 14 | Sanshandao Gold Mine 8,000 tons/day exploration and construction combined project | Heavy steel lattice column/truss |
| 15 | Qingdao Puhua Logistics Co., Ltd. | Door-style Steel Structure |
| 16 | SM Zibo Xichuan City Square Multi-storey Steel Structure Installation Project | Frame |
| 17 | Shandong Electric Power Staff Training Base | Truss |
| 18 | Heda Center City Steel Structure Gallery and Modeling Project | Rigid steel bone, heterosexual structure |
| 19 | Qingdao Lisong District Weidong Leke City Steel Corridor Project | Truss, heterosexual structure |
| 20 | Uruguay Grain Depot | Door Steel/Frame |
| 21 | Pakistani Workshop | Door Steel/Frame |
| 22 | Panama Warehouse | Door-style Steel Structure |
| 23 | Uruguay Audi 4s Shop | Frame |
| 24 | Niger Aircraft Hangar | Truss |
| 25 | Costa Rica store | Box Beam |
| 26 | Algeria Factory and Office | Frame |
| 27 | Qatar Farming Factory (Chicken House) | Door-style Steel Structure |
| 28 | Ethiopian Factory Villa | Door-style Steel Structure |
| 29 | Venezuelan Villa | Door-style Steel Structure |
| 30 | Brazilian Shipyard | Box Beam |
| 31 | Ecuadorian Farming Factory | Door-style Steel Structure |
| 32 | Pingdu Honghua Rubber Factory Mixing Workshop | Door Steel/Frame |
| 33 | Rizhao Sanbao New Factory Construction Project | Frame |
| 34 | Hisense Logistics Park 1#, 2# Warehouse Workshop | Frame |
| 35 | "JIndi Century City" commercial project (Southern Phase II) project | Grid |
| 36 | Qingdao Expressway Intelligent Traffic Safety System Engineering | Box Beam |
| 37 | Annual production of 200,000 tons of lightweight glass products | Lattice Column |
| 38 | Qingdao Kano Ceramic Steel Structure Factory | Door-style Steel Structure |
| 39 | Yulong Group Co., Ltd. Warehouse Storage Logistics Construction Project 5#, 6# Warehouse | Door Steel/Frame |
| 40 | Qingdao Baichuan Tongda Machinery Co., Ltd. Workshop | Door-style Steel Structure |
| 41 | Qingdao Hengmai Xinte Energy Technology Co., Ltd. | Door-style Steel Structure |
| 42 | Jimo Zhaolong Door and Window Workshop Steel Structure Engineering | Door-style Steel Structure |
| 43 | Qingdao Tianrui Animal Husbandry Technology Co., Ltd. Workshop Engineering | Door-style Steel Structure |
| 44 | Qingdao Qingping Energy Saving and Environmental Protection Co., Ltd. Workshop | Door-style Steel Structure |
5.) Company Information
We are a professional enterprise specialized in designing, manufacturing, marketing, and construction high-quality steel structure, prefabricated house, and container house. We have professional steel structure engineering contracting first class qualification, with more than 23-year-limited warranty in steel building manufacturing and design.
Our strength & brief as below:
1. Founded in 1997, with 600,000 SQM factory area.
2. One of the biggest steel structure manufacturers in China, with the annual output value of 1 billion yuan.
3. Got national steel structure 1st-grade qualification on production, construction, and contract.
4. China national high-tech company, with 112 engineers and 1499 staff in total.
5. Service cover custom design, manufacture, and installation.
6. Got the China National Construction Steel Structure Gold Award for several projects, which is the highest award in this field.
7. Got CE, ISO 9001, BV, SGS Certification.
6.) Our service
1. Professional design and engineering team
The full solution for house design. We could make the design for the whole house as per your requirement.
2. Procurement and Manufacture for all material for prefabricated building
We have a professional procurement team to make sure all the materials are of good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.
3. Site management & Installation supervision
We could send our engineers to help with the installation supervision, you just need to prepare a team which knows normal construction works will be OK.
