Prefabricated Ceramic Tile Processing Steel Structure Workshop
Details of steel structure workshop
| 1#workshop | |
| Exterior roof panel | V-YX53-475, Single-sided galvalume corrugated steel sheet, 0.6mm +50 mm thick ultra-fine centrifugal glass cotton felt |
| Exterior wall panel with evelation 0.8mm above | 0.5 mm double-sided galvalume corrugated steel sheet + 50 mm thick ultra-fine centrifugal glass cotton felt |
| Interior wall panel | 0.6mm galvanized steel sheet |
| Gutter | 15.mm thick stainless steel plate |
| Weather shed | 0.6 mm galvanized steel sheeting |
| Roof lighting sheet: | V-475 double waveform resin lighting board |
| 2# workshop | |
| The wall panel,roof panel and Roof lighting sheet of 2# warehouse used similar materials with 1# warehouse's. | |
Specification of steel structure workshop

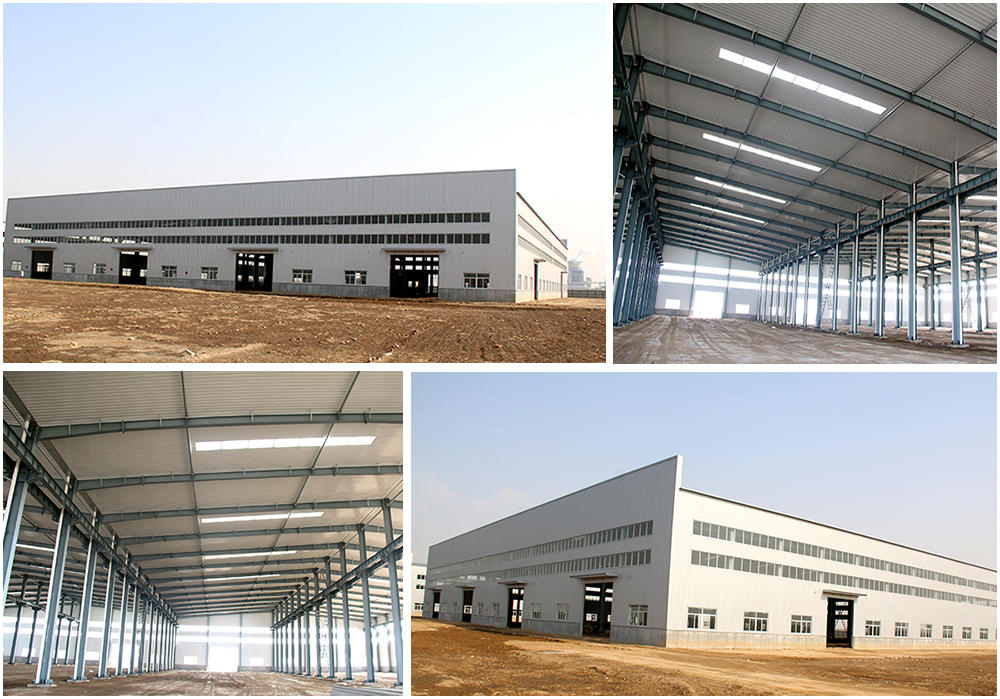

More Pictures about the steel workshop building:

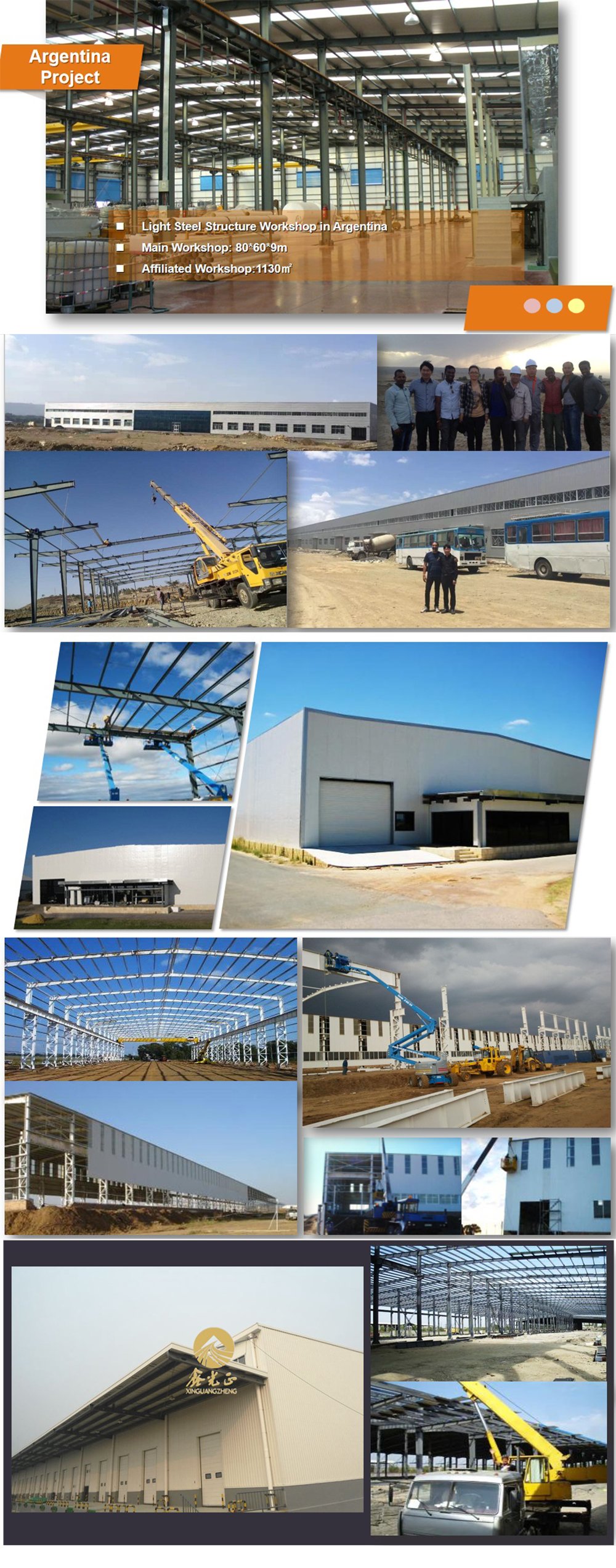

More pictures about the steel factory building to Ethiopia
Specification of steel structure workshop
| Name | Steel structure workshop | |||
| Dimensions | Length | H beam: 4000-15000mm | ||
| Thickness | web plate: 6-32mm wing plate: 6-40mm | |||
| Height | 200-1200mm | |||
| Color | According to customers | |||
| Size | MOQ is 300 m2, width * length * eave height, | |||
| Advantages | 1. Lower cost but beautiful outlook. 2. High safety performance. 3. easy to assemble and dismantle 4. manufacture under complete quality control system---ISO9001 5. installation with instruction of experienced engineers 6. Non-pollution. | |||
| Main components | Base | Cement and steel foundation bolt | ||
| Main frame | H beam | |||
| Material | Q235B, Q345B or others as buyers' requests. | |||
| Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 | |||
| Bracing | X-type or other type bracing made from angle, round pipe | |||
| Bolt | Plain bolt and High-strength bolt | |||
| Roof & wall | Sandwich panel or color plate | |||
| Door | Sliding or rolling door | |||
| Window | Aluminium alloy window | |||
| Surface | Two times of Anti-rust Painting or Hot Dip Galvanized | |||
| Sheet | 0.5mm or 0.6mm galvanized sheet | |||
| Accessories | Semi-transparent skylight belts, Ventilators, down pipe, galvanized gutter, etc | |||
| Usages | 1. workshop, warehouse, plant 2. Steel web frame structure 3. Steel H-column and steel H-beam 4. Portal frame products 5. High rise building project 6. Others steel structure buildings | |
| Packing | Main steel frame without packing load in 40' OT, roof and wall panel load in 40' HQ! | |
| Drawing | According to drawings or according to customer ' s requirement. | |
Design Parameters | If you need we design for you, please supply us the following parameter together with detail size: 1) length, width, height, eave height, roof pitch, etc 2) wind load, snow load, raining condition, seismic requirements, etc 4) Demands for doors and windows 5)Other information if necessary | |
Project Show of steel structure workshop

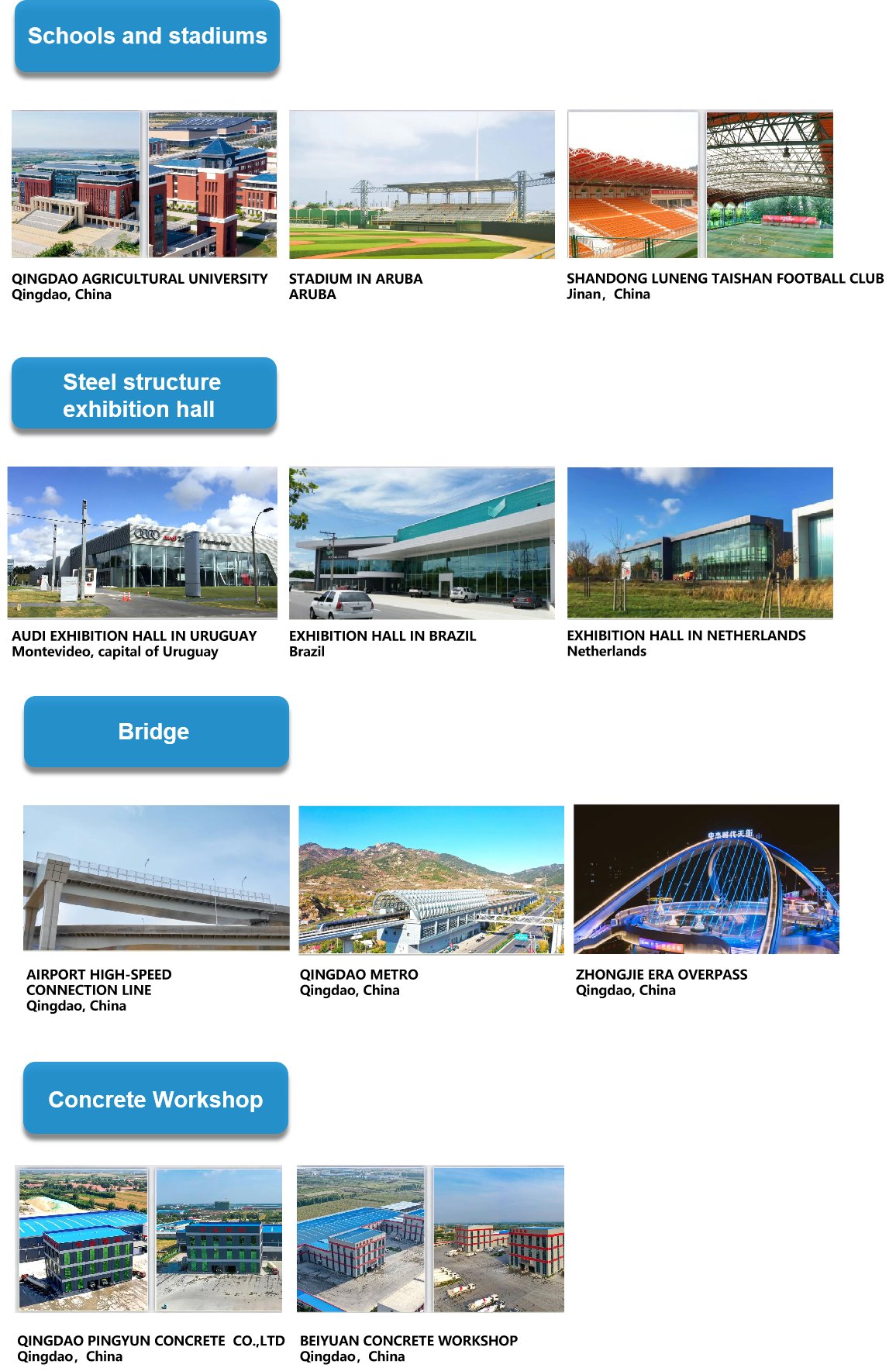

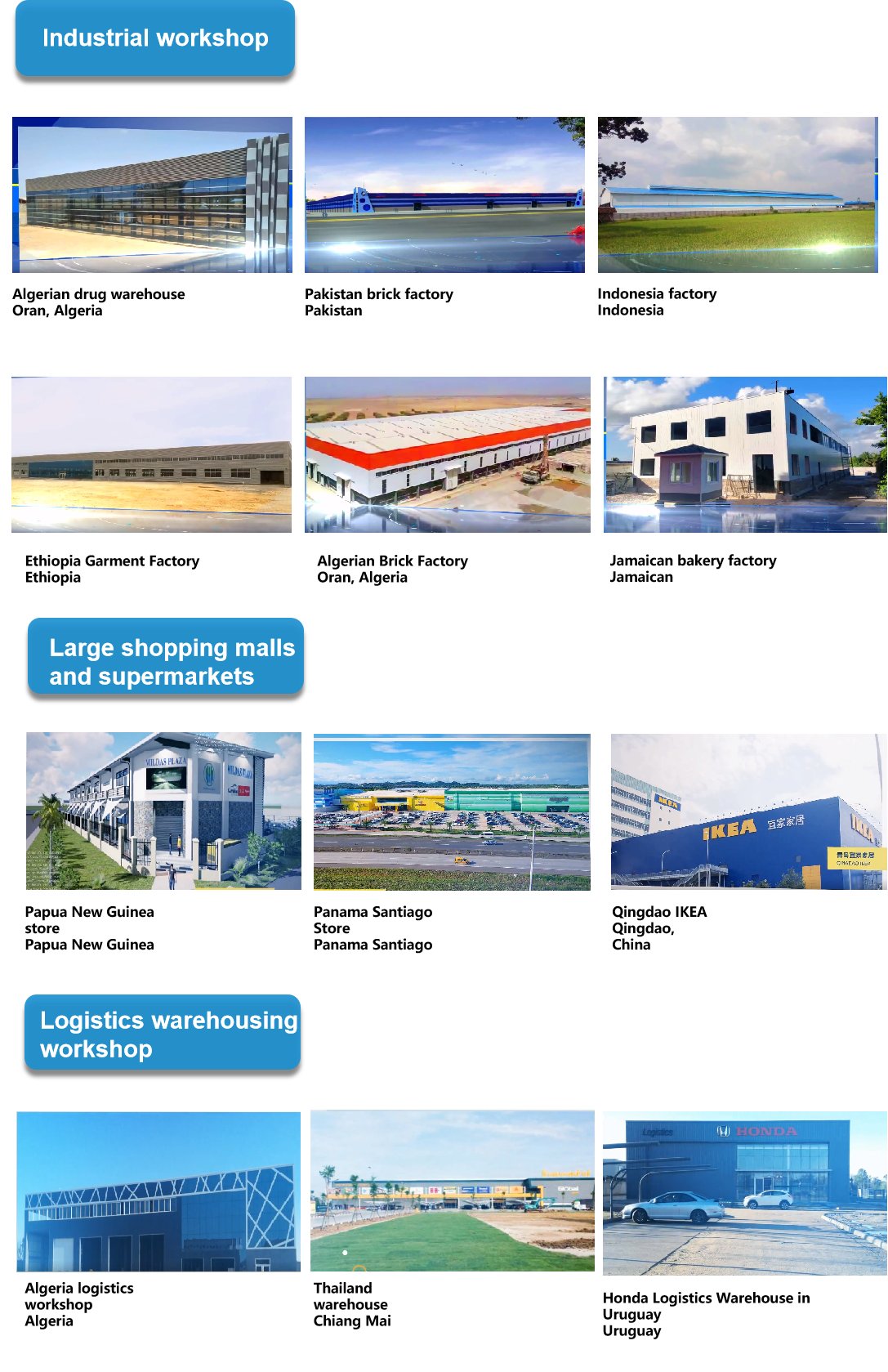

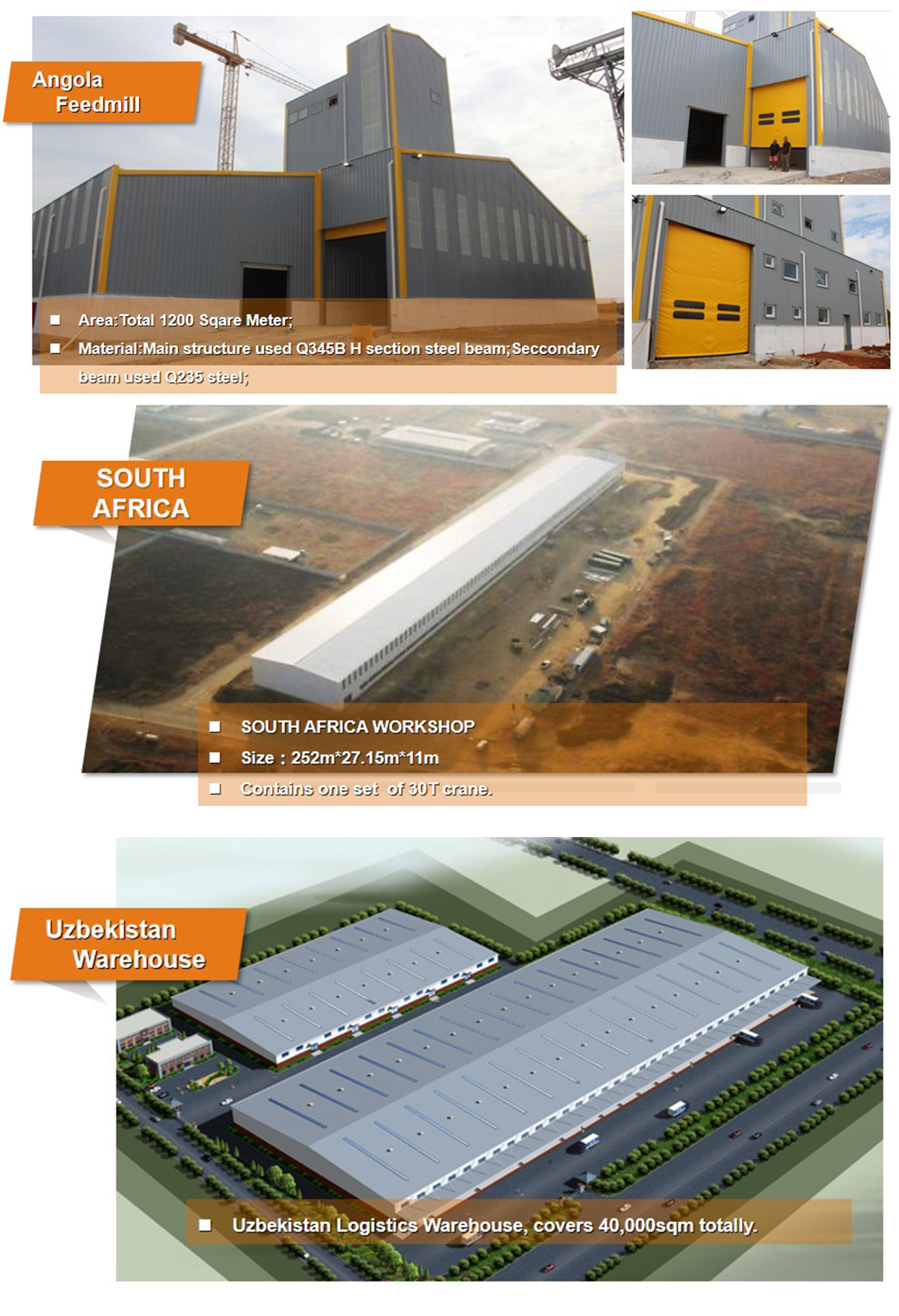

Partial List of Steel Structure workshop Projects
| No. | Project Name | Building Type |
| 1 | Qingdao New Airport Comprehensive Transportation Center and Parking Building Engineering Steel Pipe Column | Truss |
| 2 | Qingdao Blue Silicon Valley Crossing Bridge Steel Structure Engineering | Truss |
| 3 | Uganda in the Ethiopian Medical Park | Door-style Steel Structure |
| 4 | Qatar Logistics Park | Door-style Steel Structure |
| 5 | Dubai Workshop | Door-style Steel Structure |
| 6 | Qingdao Xinuo Co., Ltd Workshop | Door-style Steel Structure |
| 7 | Qingdao Xinxiu Logistics Park 1#, 2#, 3#, 4#, 5# warehouse workshop | Door Steel/Frame |
| 8 | Shandong Oruijin Packaging Project Co., Ltd. Annual production of 1 billion aluminum two-piece cans | Truss |
| 9 | Zhenghe Industrial Co., Ltd. Agricultural Machinery Chain Workshop | Door-style Steel Structure |
| 10 | Qingdao Henry Furniture Co., Ltd. 4#, 5# Workshop Engineering | Frame |
| 11 | Qingdao Thunder Heavy Industry Co., Ltd. Metallurgical Automatic Transmission Equipment Assembly Base Project | Heavy steel lattice column |
| 12 | Qingdao East Asia Industrial Co., Ltd. Integrated Plant Project | Door-style Steel Structure |
| 13 | Qingdao Yujintian Renewable Resources Co., Ltd. 3#, 4# Steel Structure Workshop Engineering | Frame |
| 14 | Sanshandao Gold Mine 8,000 tons/day exploration and construction combined project | Heavy steel lattice column/truss |
| 15 | Qingdao Puhua Logistics Co., Ltd. | Door-style Steel Structure |
| 16 | SM Zibo Xichuan City Square Multi-storey Steel Structure Installation Project | Frame |
| 17 | Shandong Electric Power Staff Training Base | Truss |
| 18 | Heda Center City Steel Structure Gallery and Modeling Project | Rigid steel bone, heterosexual structure |
| 19 | Qingdao Lisong District Weidong Leke City Steel Corridor Project | Truss, heterosexual structure |
| 20 | Uruguay Grain Depot | Door Steel/Frame |
| 21 | Pakistani Workshop | Door Steel/Frame |
| 22 | Panama Warehouse | Door-style Steel Structure |
| 23 | Uruguay Audi 4s Shop | Frame |
| 24 | Niger Aircraft Hangar | Truss |
| 25 | Costa Rica store | Box Beam |
| 26 | Algeria Factory and Office | Frame |
| 27 | Qatar Farming Factory (Chicken House) | Door-style Steel Structure |
| 28 | Ethiopian Factory Villa | Door-style Steel Structure |
| 29 | Venezuelan Villa | Door-style Steel Structure |
| 30 | Brazilian Shipyard | Box Beam |
| 31 | Ecuadorian Farming Factory | Door-style Steel Structure |
| 32 | Pingdu Honghua Rubber Factory Mixing Workshop | Door Steel/Frame |
| 33 | Rizhao Sanbao New Factory Construction Project | Frame |
| 34 | Hisense Logistics Park 1#, 2# Warehouse Workshop | Frame |
| 35 | "JIndi Century City" commercial project (Southern Phase II) project | Grid |
| 36 | Qingdao Expressway Intelligent Traffic Safety System Engineering | Box Beam |
| 37 | Annual production of 200,000 tons of lightweight glass products | Lattice Column |
| 38 | Qingdao Kano Ceramic Steel Structure Factory | Door-style Steel Structure |
| 39 | Yulong Group Co., Ltd. Warehouse Storage Logistics Construction Project 5#, 6# Warehouse | Door Steel/Frame |
| 40 | Qingdao Baichuan Tongda Machinery Co., Ltd. Workshop | Door-style Steel Structure |
| 41 | Qingdao Hengmai Xinte Energy Technology Co., Ltd. | Door-style Steel Structure |
| 42 | Jimo Zhaolong Door and Window Workshop Steel Structure Engineering | Door-style Steel Structure |
| 43 | Qingdao Tianrui Animal Husbandry Technology Co., Ltd. Workshop Engineering | Door-style Steel Structure |
| 44 | Qingdao Qingping Energy Saving and Environmental Protection Co., Ltd. Workshop | Door-style Steel Structure |
Project Case of steel structure workshop
FAQ
Q1: What are your main products?
A: Our man products have prefab K house, T house, SHS house, H house, container house, light steel structure villa, steel structure warehouse, sentry box, sandwich panel, and other construction materials.
Q2: What will the client provide before factory offers a good quotation?
A: When we receive an inquiry from a client, client please fills the purchasing intention sheet, providing us with information about house dimensions, draft drawing, layout and materials for the prefabricated house. We will design the drawings and offer a competitive quotation with the above information.
Q3: What are the main materials of the prefabricated house?
A: Our prefabricated house materials mainly include light steel structure, sandwich panel, roof tile, door, window, covers, screws, and other accessories.
Q4: How you calculate the total area?
A: Industry calculation rule as below:
(1) house area = exterior house length X exterior house width X floor
(2) canopy area=exterior house length X 1/2 X canopy width
(3) staircase area = 4.5 sqm X quantity of staircase
(4) corridor area = exterior house length X corridor width
(5) total area = (1) + (2) + (3) + (4) + (5)
Q5: What drawing of the house will factory supply?
A: Plan drawing, elevation drawing, sectional drawing, foundation drawing, installation drawing.
Q6: How many types of sandwich panel do you have?
A: We have EPS(polystyrene)sandwich panel, rock wool sandwich panel, and PU(polyurethane)sandwich panel.
The characteristics of your sandwich panels respectively:
1.EPS(polystyrene)sandwich panel: thickness is 50mm, 75mm, 100mm. EPS volume weight is 80-200Kg/m3, water-proof.
2.Rock wool sandwich panel: thickness is 50mm, 75mm, 100mm. Rock wool volume weight is 200-400Kg /m3, fire-proof, sound-insulation, heat-preservation.
3.PU(polyurethane)sandwich panel: thickness is 50mm, 75mm, 100mm. PU volume weight is 150-300/m3 water-proof, fire-proof, heat-proof, heat-insulation, heat-preservation, sound-insulation.
Q7: How many colors do your sandwich panels have?
A: Offwhite, ivory white, blue and red color etc...
