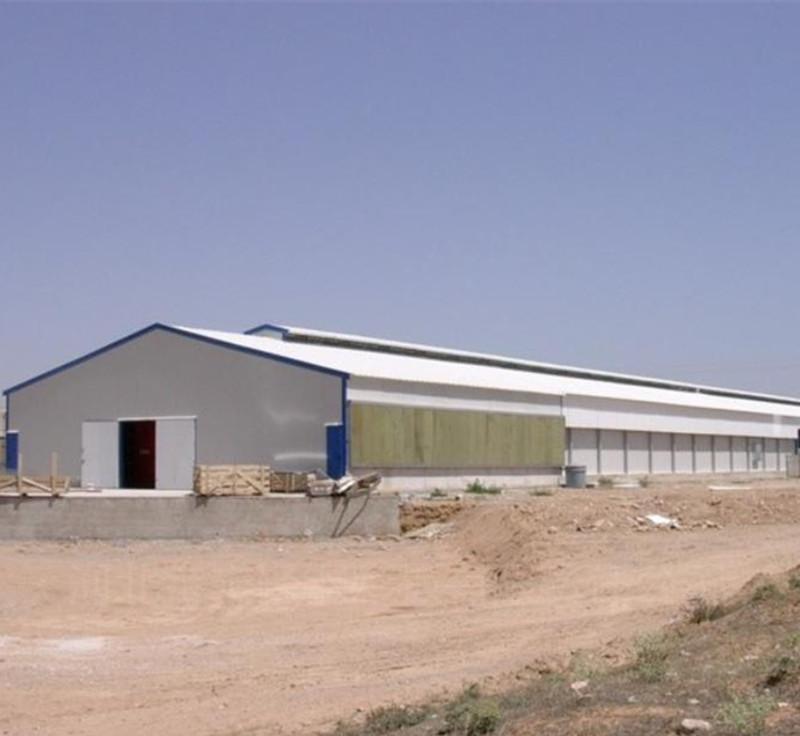

Prefab Poultry Modern Livestock Farming House From Factory
Product Information of livestock farming house from factory
Steel structure is made from organized combination of structural steel members designed to carry loads and provide adequate rigidity. The members of the steel structures are made of steel and are joined by welding, riveting or bolting. These structures are reliable and require less material than other types of structures due to the high strength of steel which are distinguished by the diversity of their shapes and their architectural expressiveness.
Steel Structure Application Fields of livestock farming house from factory:
We cater for every market from warehouses, workshops to 4S car exhibition centers, shopping mall, aircraft hangers, poultry & pig sheds, container houses, agricultural & commercial buildings and so on.
Characteristics:
1. Cost savings: be inexpensive to manufacture, requires less maintenance than other traditional building methods. Moreover, 98% of all steel structure can be recycled into new steel products without reducing physical properties.
2.Quick erection: steel structures can be erected quickly. The accuracy of steel components speeds up the process and allows monitoring on the management software to complete sooner.
3. Health and safety: Structural Steel is manufactured at the factory and rapid erection on the construction site by skilled personnel making steel structure safe. Industry surveys consistently demonstrate that steel structure is the safest solution. There is very little noise and dust in the process of steel structure erection because structural steel members are fabricated at the factory.
4. Flexibility: Can be modified in the future for new application, loading conditions, vertical expansions and changes in owner's desires in ways that other framing systems can not accomplish.
Main parts of the steel structures and technical parameters:
Main Steel Frame System | |
Main structure | H section steel Q345, alkyd painting, two primary painting, two finish painting. |
Roof purlin | XZ160*60*20*2.5, galvanized |
Wall purlin | XZ160*60*20*2.5, galvanized |
Intensive bolt | Grade 10.9 |
Turn buckle bolt | M20+2, steel Q235, processing |
Anchor bolt | M24, steel Q235, processing |
Ordinary bolt | Galvanized bolt M20 |
Ordinary bolt | Galvanized bolt M12 |
Brace nut | Galvanized bolt M12 |
Bracing System | |
Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
Wall & Roof System | |
Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Edge cover | 0.4mm color plate, angle Alu. |
Fittings & accessories | Nails, glue etc. |
Unpowered ventilator | Diameter Φ600, stainless steel |
Sky lighting band | 1.2mm FRP, double layer |
Sliding door | sandwich panel door |
Roof drainage system | |
Gutter | 0.8mm color steel plate |
Rainspout pipes | Φ160 PVC pipe |
Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1. Location (Where will be built): Country area
2. Size ( length* width* height ): m* m* m*
3. Wind speed: KM/H
4. Snow load: KG/m²
5. Rain load: KG/m²
6. Anti-earthquake: level
7. Brickwall need or not? If yes, 1.2m high or 1.5m high?
8. Thermal insulation: If yes, fiberglass wool, rock wool, PU sandwich panels will be suggested; if not, the metal steels will be ok. The cost of the latter will be much lower than that of the former.
9. Door quantity & size: units (width)m (height)m
10. Window quantity & size: units (width)m (height)m
11. Crane needed or not: If yes, units, crane max lift height m, max lift capacity tons, max wheel pressure and min wheel pressure!
