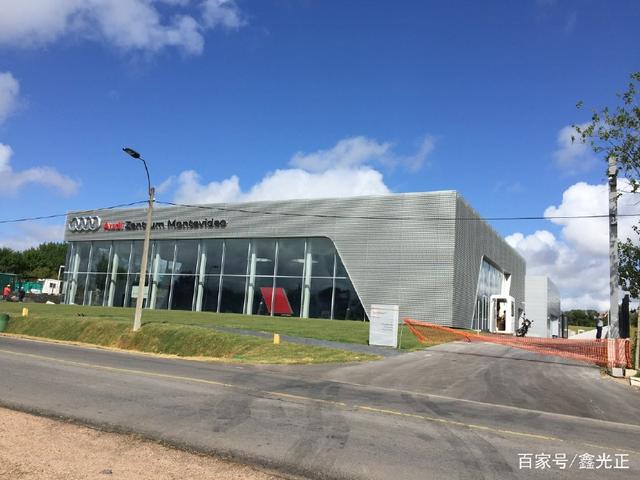

Multifunctional Building Audi Showroom Exhibition Hall in Uruguay

Multifunctional Building Audi Showroom Exhibition Hall in Uruguay

Product feature and application for Prefabricated Steel Structure Commercial Car Showroom

a.Light weight, high strength, 50years durable use, no construction waste.

b.Quality certification ISO, CE, BV and SGS

c. Cost considering: Time saved, cost saved;

d. Easy installation, materials can be recycled used, environmentally;

c. Used widely: Hotel, apartment

d. Structural durability, easy maintenance.

ⅠSpecification of Audi Showroom Exhibition Hall in Uruguay:
Area: 4587m2
Span: 50.42m without any internal columns
Eave height:7.65m
Ridge height: 8.8m
Wind load: 158km/h
Roof live load: 50kg/m2
Total steel: 254Ton

II. Materials of Audi Showroom Exhibition Hall in Uruguay:

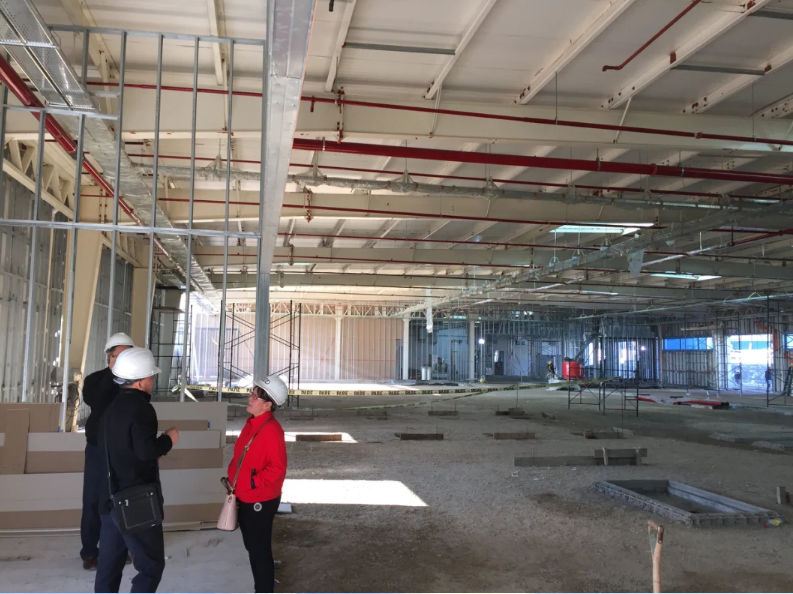

The main frame (columns and beams)is made of welded H-style steel and lattice roof beam
The columns are connected to the foundation by pre-embeddding anchor bolt.
The beams and columns, beams and beams are connected with high intensity bolts.
The wall and roof are made of steel sandwich panels, which are connected with the purlin by self-tapping nails.
Doors and windows aluminum
ETC
III. Features and services:
1, Attractive design ----beautiful and elegant looks, use the color steel sandwich panel, the material is
Polystyrene foam.
2, Easy to assemble and dismantle -----can be rebuilt for dozens of time with plugs and screw.
3, Firm structure----steel frame structure and sandwich panels
4, Durable----the steel frame parts are all processed with anti-corrosion coating and can be used for as
Long as 30 years.
5, Reduce cost by integrating &manufacturing &service processes.
6, With reliable quality and efficient service Offer one-stop service from developing, design, manufacturing
To installation
7, Sizes and design are according to requirements
