Description

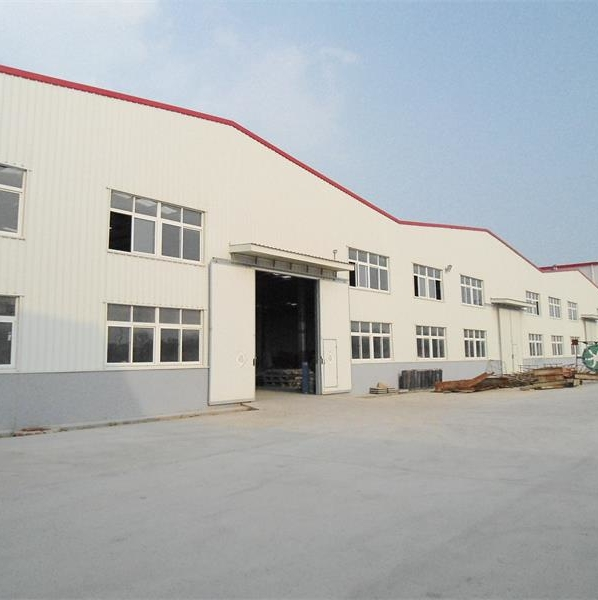

The production of Prefabricated Steel Warehouse is mainly carried out in specializedmetal structure factory, so the production is simple and the precision is high. The fabricated components are transported to the site for installation, with high degree of assembly, fast installation speed and short construction period. Due to the weldability of steel, the connection of steel structure is greatly simplified, and it is suitable for manufacturing varioussteel structureswith complex shapes.
 |  |  |

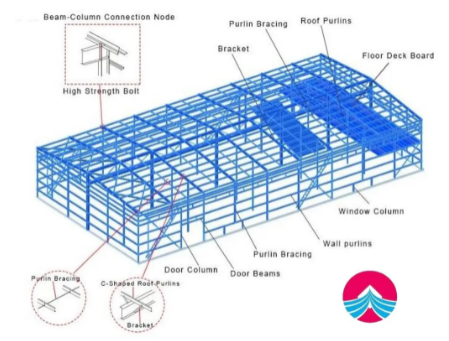

| The main component of steel structure plant | |||
| Main Member | Submember | ||
| 1. | Steel column | 1. | Beam bracing/SC bracing/roof horizontal brace |
| 2. | Steel beam, also known as roof beams | 2. | Column bracing/ZC bracing/vertical brace |
| 3. | Wind-resisting column | 3. | Pull rod/strap/purline brace |
| 4. | Roof purlin, wall purlin | 4. | Tie bar |
| 5. | Steel gutter | 5. | Roof panel |
| 6. | Crane beam | 6. | Knee bracing |
| 7. | 7. | Standard parts and accessories | |

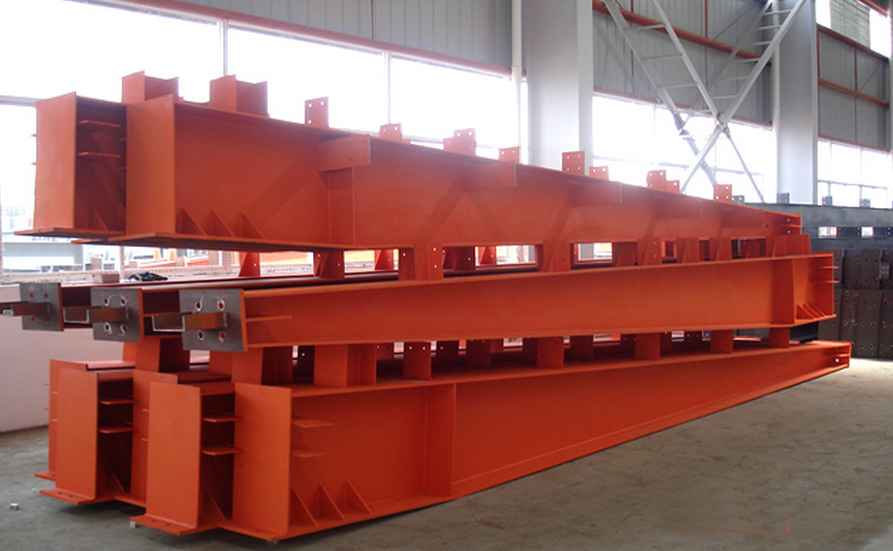

Steel column

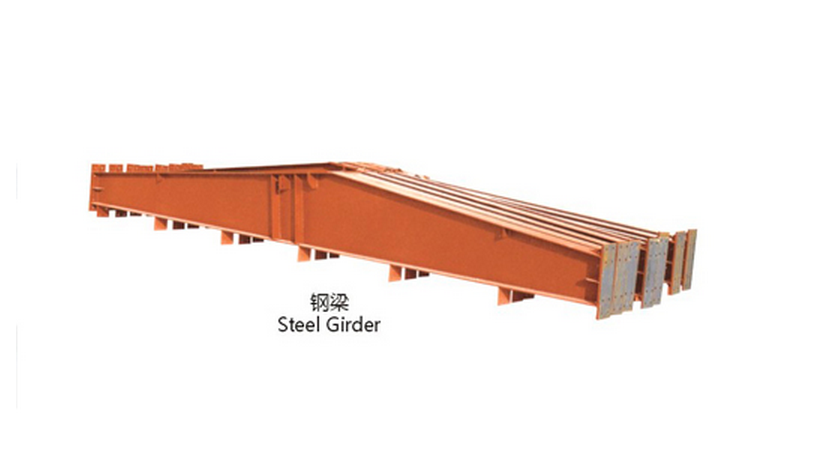

Steel beam

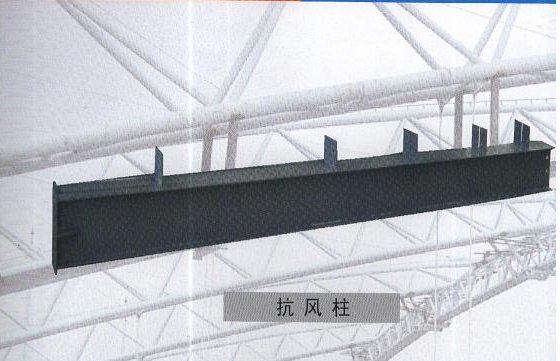

Wind-resisting column

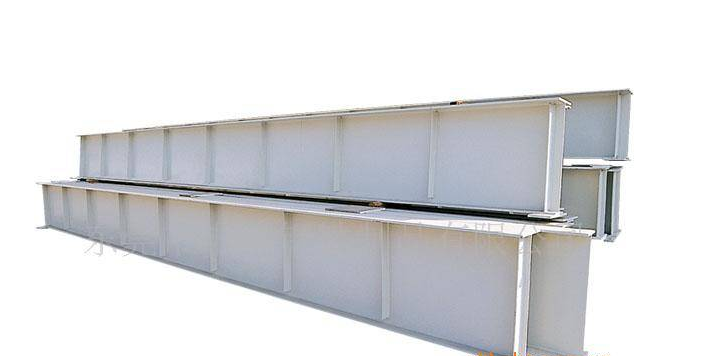

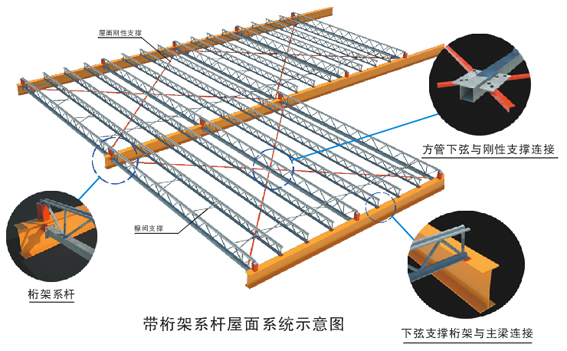

crane beam
crane beam

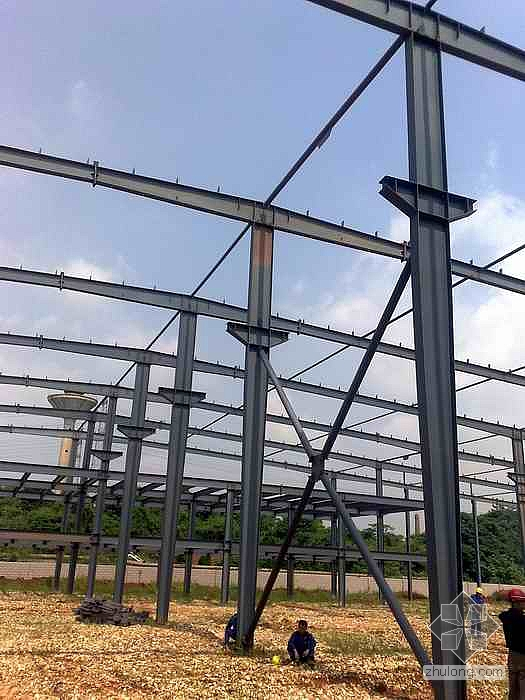

column bracing
| Main Parts | Item Name | Specification |
| Main Steel Frame | Steel Column | Q235B, Q345B H shape, Box, Steel pipe, Hot rolled sheet |
| Steel Beam | Q235B, Q345B H shape, Steel Truss, Hot rolled sheet | |
| Supporting System | Brace | Q235B, Q345B Steel rod, Steel pipe, Angle steel |
| Roof Purlin | C or Z shape, Steel purlin | |
| Wall Purlin | Q235B, Q345B C or Z shape, Steel purlin | |
| Roof | Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc., | |
| Wall | Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc., | |
| Accessories | Bolts | Ordinary, High strength |
| Gutter | Galvanized Steel plate, Stainless steel | |
| Windows | Aluminum alloy-Glass, Aluminum alloy-shutter, PVC | |
| Doors | Sliding or Rolling door | |
| Downpipes | PVC pipe, Color steel pipe | |
| Edge Cover | Made of color steel sheet thickness 0.5mm | |
| Ventilator | Stainless steel | |
| Crane | Crane in 5 tons to 20 tons |
Advantages
1. Flexible space layout.
2. Green environmental protection and sustainable development.
3, light weight, high bearing capacity.
4. Excellent quality and superior seismic performance.
5. Realize the industrialization and industrialization of residential construction, and the construction period is short.
6, economical and applicable.
Can be assembled and disassembled multiple times.
Design life: 10 years.
The color steel sandwich panel has good fire resistance and heat insulation performance according to the characteristics of color steel and polystyrene materials.
About Us
| 1.Large scale and advanced production equipment.We have six major production areas, each equipped with advanced production equipment. We focus on standardizing production management, strictly controlling quality, and doing everything possible to ensure quality while reducing production costs, in order to provide customers with the most cost-effective products. |  |
| 2.Over a hundred senior technical talents.We are committed to the relentless pursuit of technological breakthroughs and currently has over a hundred mid to high tech talents of various types, with more than 70 national patents obtained. |  |
| 3. High strength and Long life span.can resistance grade 8 earthquake,can be used for more than 50 years. |  |
| 4.Complete production qualifications.We have achieved corresponding standards and specifications in production conditions, technical capabilities, quality control, personnel allocation, and safety production, and have won multiple honors. |  |
FAQ
Q. Are you manufacture factory or trading company?
A: We are Integrated industry and trade company. And you are welcomed to visit us for inspection.
Q. How we install the builidng and the equipment?
A: We will give detailed installation manual and video for free. And if you need, we could send engineers to guide the installation
Q. Do you offer designing service for us?
A:Yes, we could design full solution drawings as your requirements. They use software such as Auto CAD, PKPM, MTS, 3D3S, etc. we will be glad to establish sincere business cooperation with you in the near future
Q. What is the delivery time?
A: 30-60 days after the deposit received based on order qty and stock
Q. How can you get a quotation for your projects?
A: You can just fill out our questionaire and send back to us. We will get back to you soon
