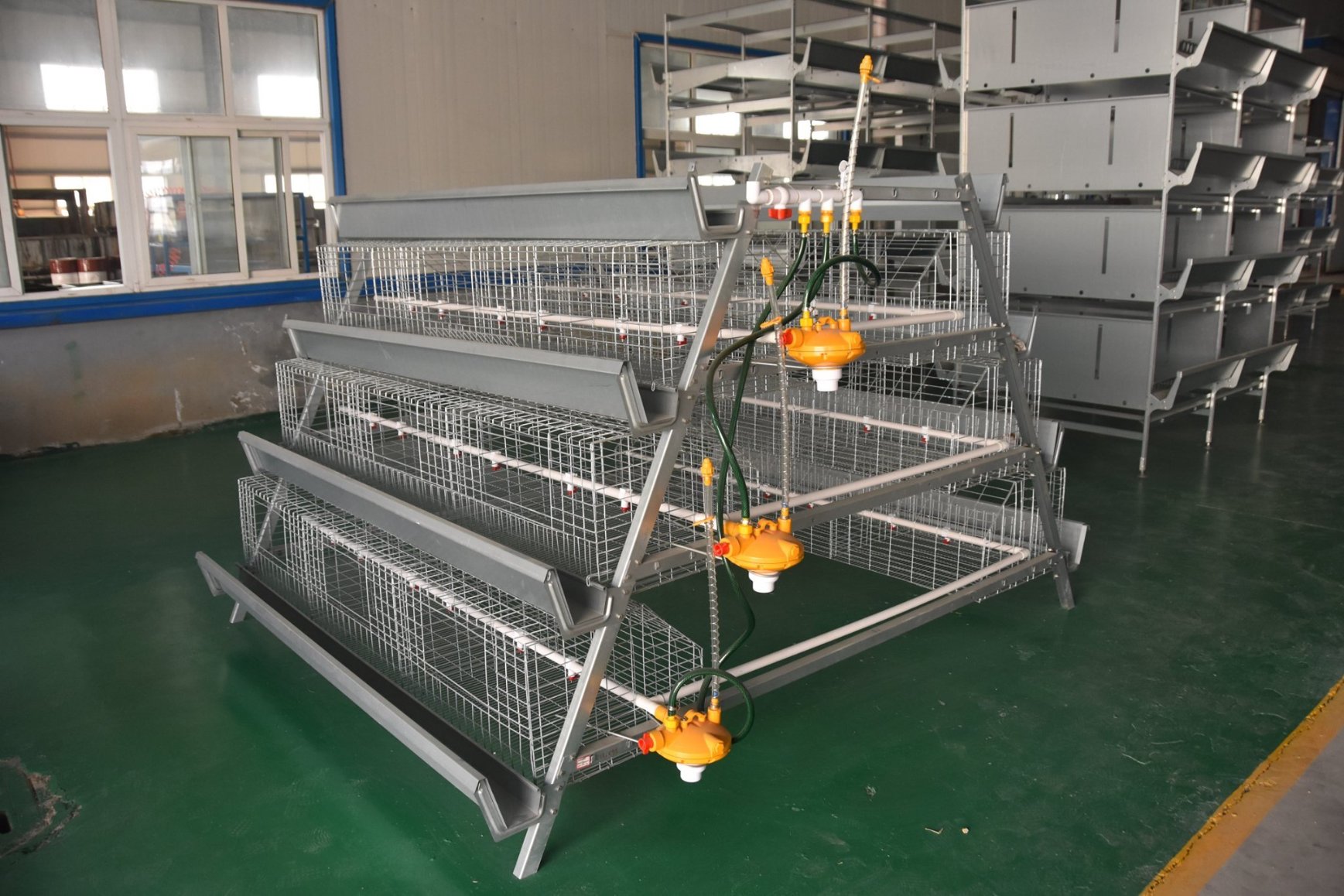

Hot Galvanized Wire Mesh Broiler Cage Auto Equipment
Prefab Poultry House is easy to manage and the market is on your doorstep. A well managed chicken house is very profitable, no matter it is poultry broiler or layer house. Poultry housing can be as crude or elaborate as you wish to build as long as you provide the following:
1. Protection
2. Adequate Space
3. Easy Access to Feed and Water
4. Source of Light:
5. Ventilation
6. Appearance
7. Use Common Sense

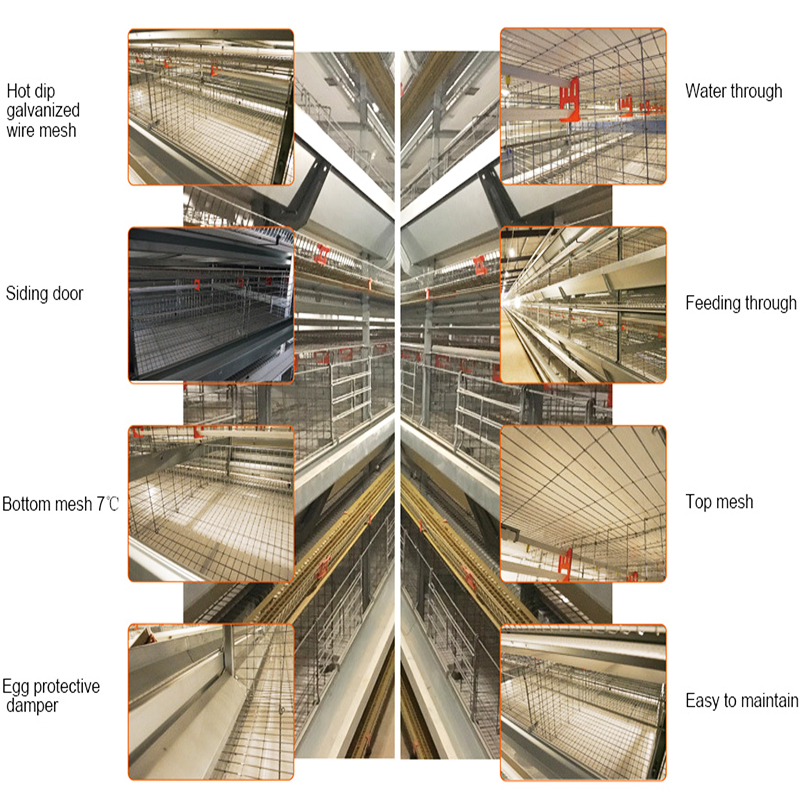

Detailed description of broiler cage equipment:
| Detailed description of Steel structure Rabbit House | ||
| Dimension | Length | customer designed |
| Width | customer designed | |
| Height | customer designed | |
| Weather condition | Wind speed | m/s or km/h |
| Snow load | kg/m2 | |
| Earthquake | degree | |
| Life span | 25-50 years | |
| Steel Frame | Main Frame | Q345B & Q235 |
| Secondary Frame | Q235 C or Z section Purlin, Round Bar | |
| Bracing | Angle brace, Welded Pipe | |
| Maintenance Frame | Wall & Roof cladding | Single color corrugated steel sheet |
| EPS, Glass wool, Rockwool, PU, etc sandwich panel | ||
| Steel sheet THK. :0.3-0.7mm | ||
| Heat Insulation THK.:50-150mm | ||
| Surface | Panited surface | Antirust paint,total thickness: 100-120um; Warranty period: 18-20 years |
| Hot dip galvanized surface | 65,86um; Warranty period: 45-50 years | |
| Accessories | Door | Sliding door;PVC door |
| Drainage system | ||
| Equipment | Feeding system | Feeder motor connect with feeder hopper |
| Nipple drinker system | ||
| Tunnel ventilation and heating system | ||
| Curtain system: automatic curtain machine | ||
| Suspension system with ceiling winch | ||
| Ventilation: external damper fan with cone | ||
| Delivery time | 20-25days | |
| Shipment | steel frame is packed in 40'OT container, Maintenance frame and others are packed in 40'GP or 40'HQ | |
Project details of broiler cage equipment:

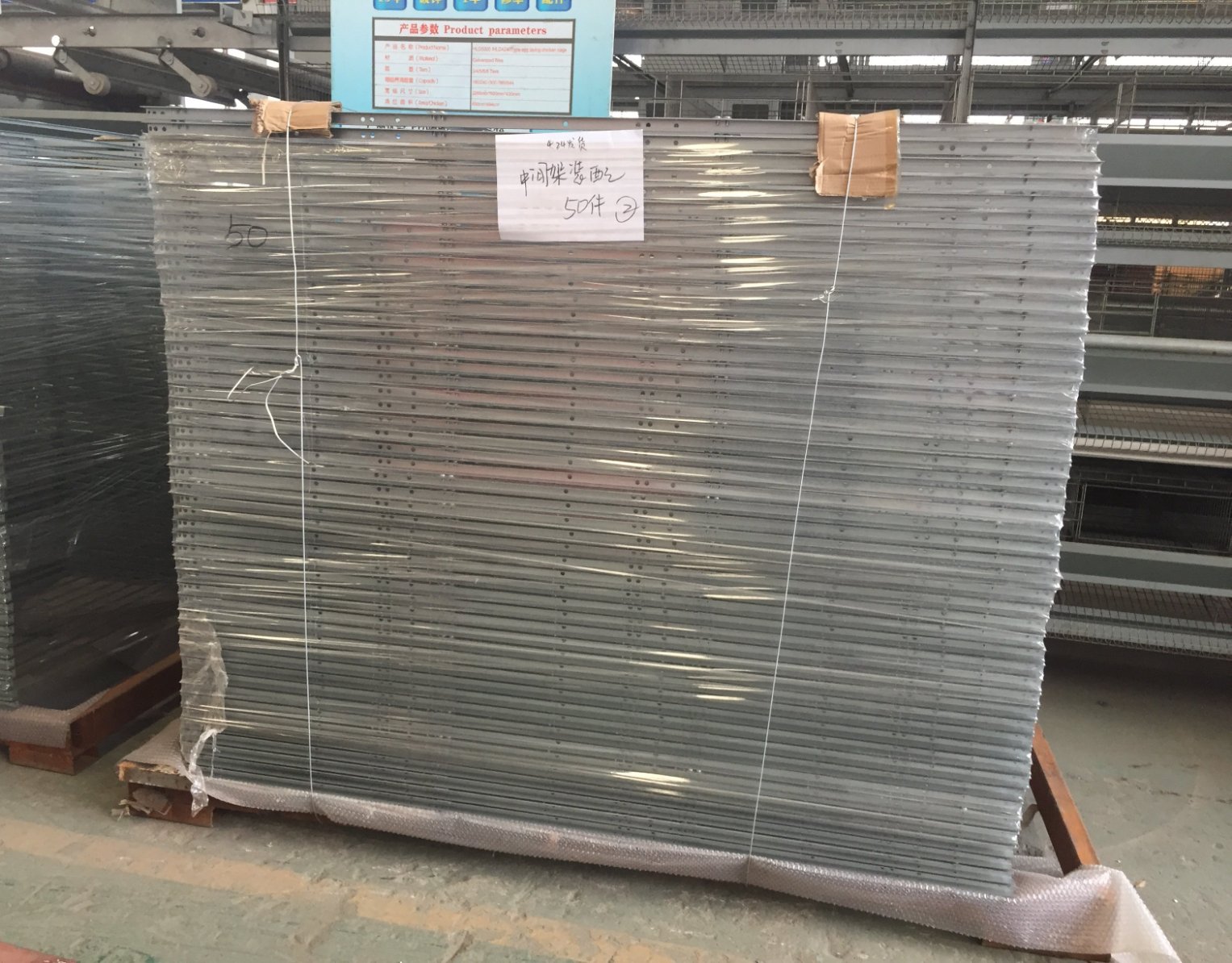

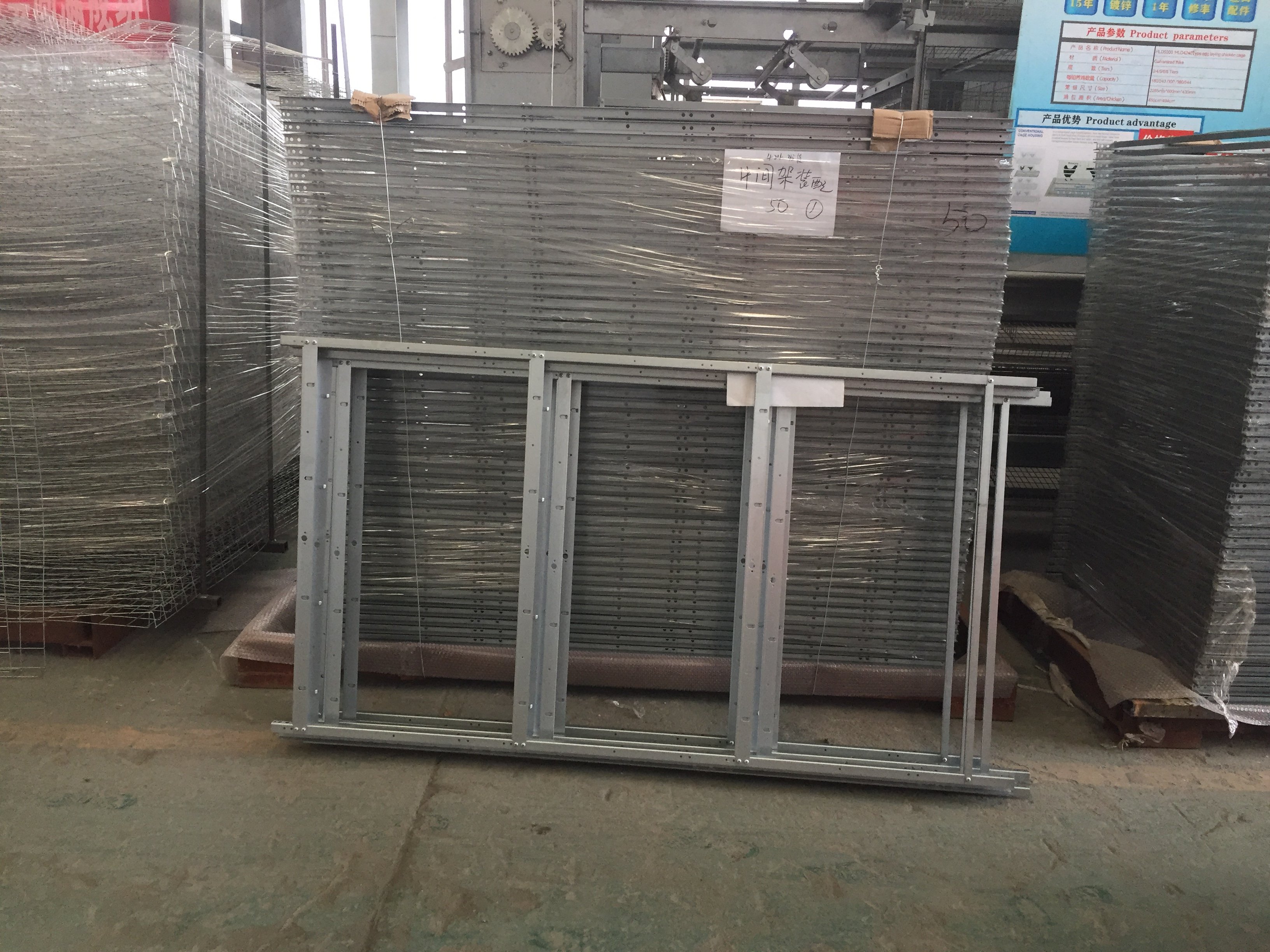

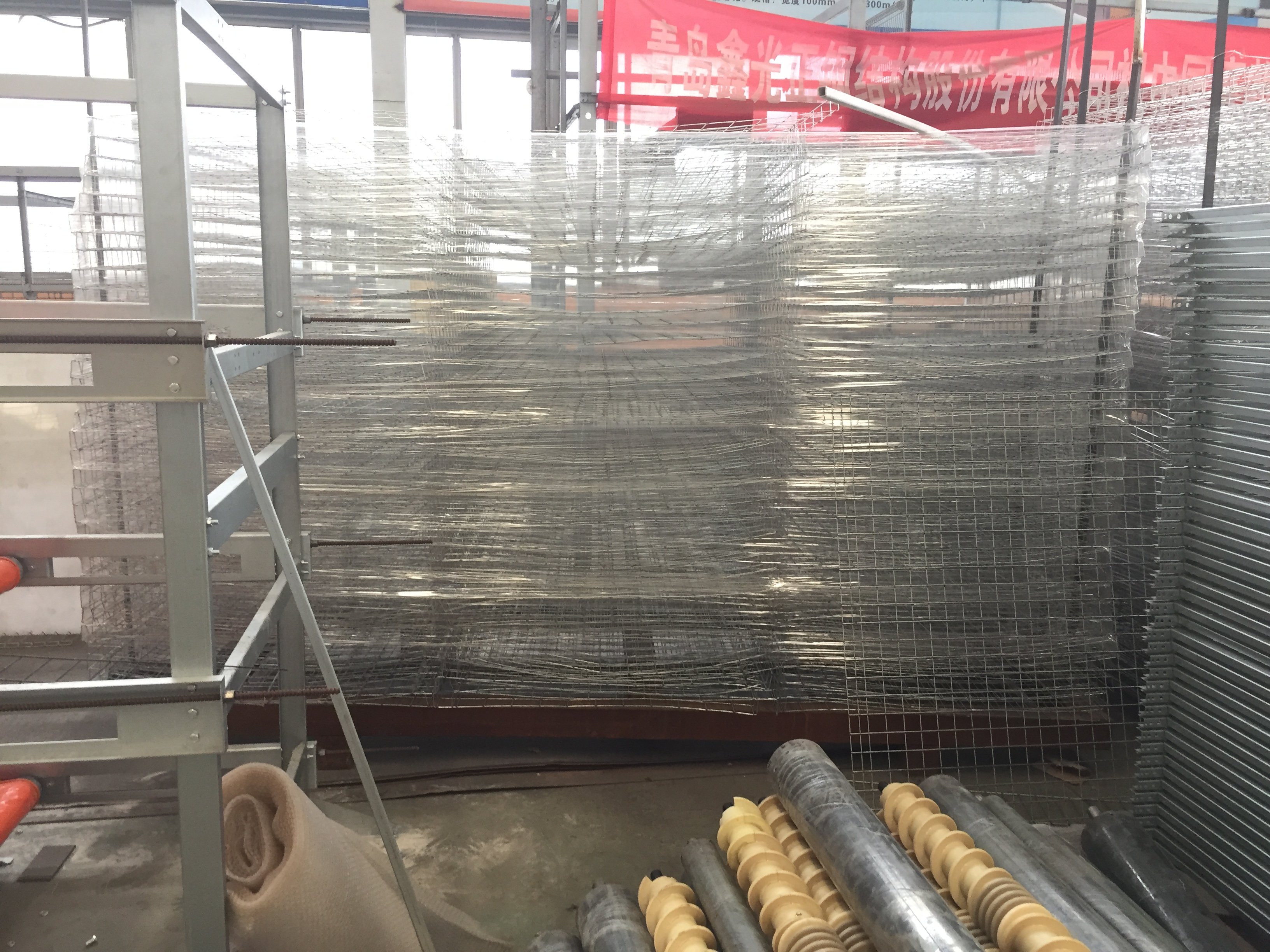

Pacage details of broiler cage equipment:
| Quantity(Square Meters) | 1 - 500 | 501 - 5000 | 5001 - 10000 | >10000 |
| Est. Time(days) | 45 | 60 | 70 | To be negotiated |
1 . A variety of cages to meet the needs of different spans of housing construction
2 . The frame structure satisfies the overall stability of the equipment , the mesh wear-stress is changed into a sheet metal wear-stress , which can prevent deformation of the mesh
3 . The main frame of the equipment is formed by one-time forming of275g hot-dip galvanized sheet , which guarantees the anti-rust ability of the equipment under the premise of meeting the strength of the equipment
4 . The cage door is a fully open structure . When the chicken is caught , the chicken wing breaking rate is reduced , which is convenient for operation
5 . Double-layer scraping structure ensures sufficient separation of manure and feces
6 . After the welding of the mesh is completed , it will be hot-dip galvanized , so it is corrosion-resistant and anti-aging , which has a service life of 10-15 years
Reasonable Equipment Configuration
1. Provide professional integrated turnkey project with professional steel structure of the chicken house
2. Professional technicians provide the most reasonable design according to the climatic conditions of different countries and regions
Other advantages
The principle of joint operation of solar energy and air energy The solar collector , the hot water storage tank and the air energy heat pump unit are placed on the roof of the building . On sunny days , the water is heated by the solar energy collector , then stored in the heat preservation water tank , and the hot water pipe can be used in multiple directions ( indoor fan coil , floor heating pipe and shower ) and provide hot water at the same time . Fully automatic operation . No manual operation . Automatic auxiliary air energy heat pump unit will work on rainy days to ensure continuous supply of hot water .
