Factory Supply Broiler Poultry Farm Husbandry Equipment
I.Production Description of poultry farm husbandry equipment :
Factory Supply Broiler Poultry Farm Equipment Chicken Feeding Line Equipment
Product details of poultry farm husbandry equipment :

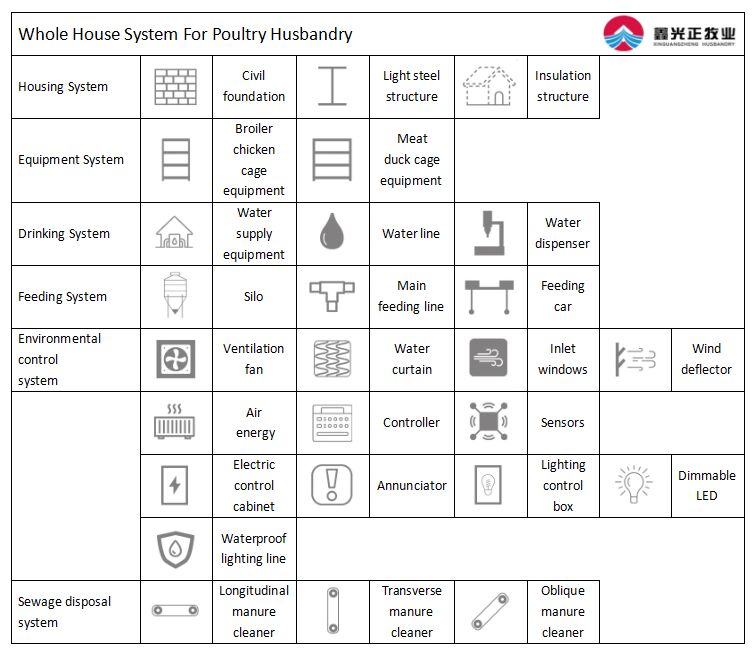

Our automatic poultry farm husbandry equipment consists of:
1. Main feed delivery line
(1)Main feeding system is a complete set of automatic feeding system, included a material conveying pipe, silo, auger, drive motor and a feed level sensor.
(2) Main Feed line is mainly used to deliver feed from silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line, which can control the drive motor on and off to realize automatically feeding.
| Manpower hopper or silo | 600/800kg hopper, 5/8/10/15/18/20mt silo |
| Motor | Taiwan brand Power: 0.75Kw/1.1Kw Voltage: 380V, three-phase/220V, single-phase/others |
| Main feed line | Diameter of pipe: 75mm Material: PVC |
| Auger | Origin: South Africa Feeding ability: 1400Kg/h (maximum) |
| Sensor | Origin: Germany |
Different specifications of silos are alternative to choose according to the daily consumption.
Material of silo consist of galvanzied sheet and glass fiber reinforced plastic.

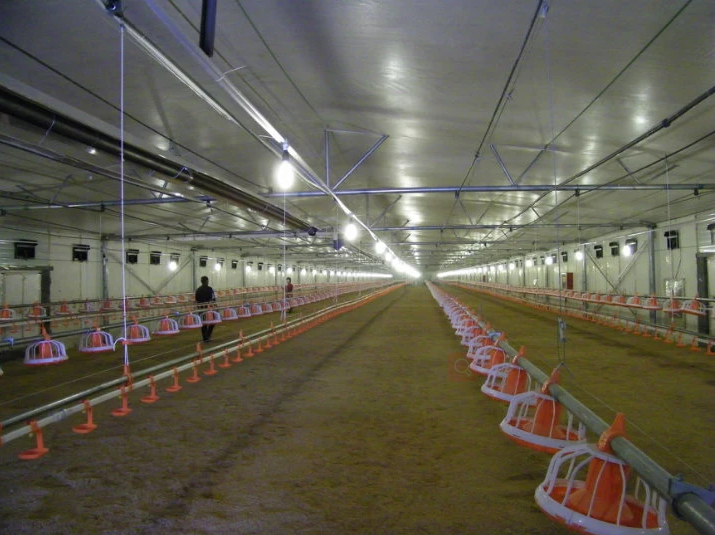

2. Poultry farm husbandry equipment feeding line system

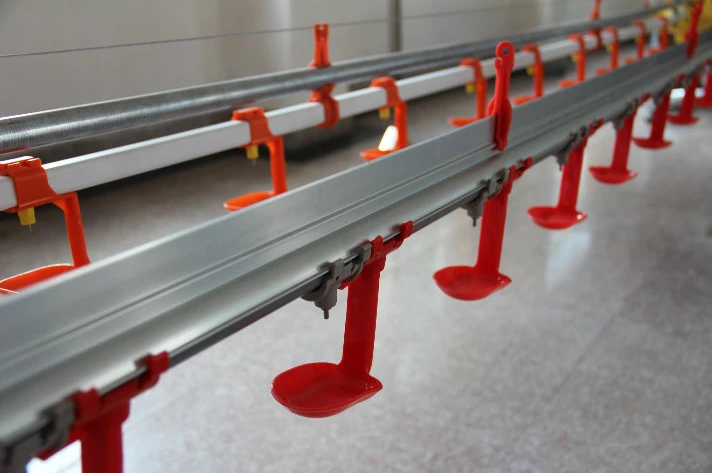

3. Poultry farm husbandry equipment nipple drinking line system
This system can provide fresh and clean water for poultry which is crucial for the growth of Poultry.
The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.

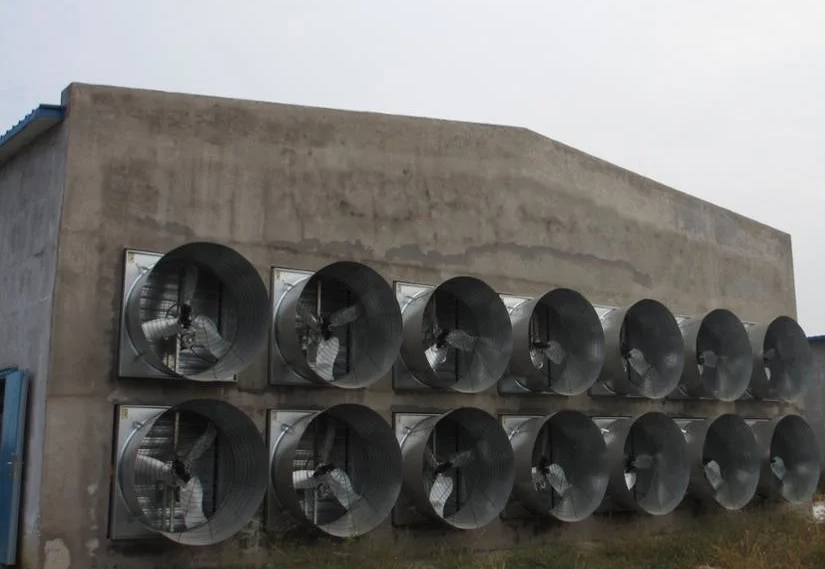

4. Poultry farm husbandry equipment ventilation fan system
| Specifications | 50'' box fan | 36'' box fan |
| Flow amount (m3/h) | 41000 | 20800 |
| Size (L*W*H) (mm) | 1380*1380*450 | 1000*1000*450 |
| Noise level | ≤65dB | ≤64dB |
| Power | 1.1Kw | 0.4Kw |
| Voltage | 220V/others | 220V/others |
| Current | 2.8A | 1.6A |
| Weight | 88Kg | 66Kg |
5. Poultry farm husbandry equipment cooling pad system:
1. Cooling system:
1, "wet curtain - negative pressure fan" cooling system is composed of paper porous wet curtain, water circulation system, fan. When the unsaturated air flows through the porous, wet curtain surface, a large amount of water evaporates, and the sensible heat reflected by temperature in the air is converted to the latent heat of evaporation, thus reducing the temperature of the air itself. When the fan draws air, the cold air cooled by the wet curtain is continuously introduced into the room, so as to achieve the cooling effect.
2, the cooling of the wet curtain fan is to use the circulating water pump continuously to draw out the water in the water tray, and spray evenly on the evaporation filter layer through the water distribution system, so that the outdoor hot air through the evaporation heat exchanger (evaporation wet curtain) and water heat exchange, through the water evaporation and cooling, cool, clean air is pressurized into the room by the low noise fan. To achieve a cooling effect.
Two, humidification system:
As a humidifying medium, wet curtain is used in plantations, greenhouses and other special industries with high humidity requirements. Because the wet curtain has the characteristics of water absorption, water resistance, fast diffusion speed and lasting efficiency, it is very suitable for regulating indoor humidity.
Three, filtration system:
Wet curtain also has ventilation, breathable and corrosion resistance. It has excellent filtration effect on dirt and dust in the air. It is a non-toxic and odorless environmental protection material for clean humidification and oxygen cooling, so it is also used as a medium for air purification and filtration.
6. Poultry farm husbandry equipment environment control system
The system saves labor and resources under the condition of assuring the optimum growth environment of chickens.
