Evaporative Cooling Pad Husbandry Equipment for Poultry House
Product description of evaporative cooling pad husbandry equipment：
Evaporative Cooling of husbandry equipment:
1, High water absorption
2, Evaporation cooling efficiency
3, High strength, no deformation
4, Suitable for positive and negative pressure device
5, Durable
6, Energy saving, environmental protection
7, Easy to install
Technical Parameter of evaporative cooling pad husbandry equipment:| Model | Height(mm) | Width(mm) | Thickness(mm) | Flute | Angle |
| 7090 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/45° |
| 7060 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/45° |
| 5090 | Customized | Customized | Customized | 5mm | 45°/45° |
1. Cooling system:

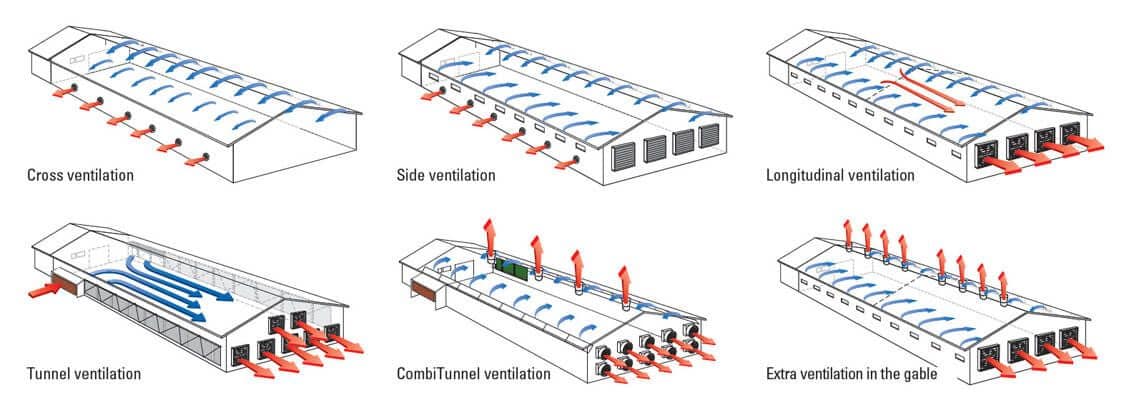

1, "wet curtain - negative pressure fan" cooling system is composed of paper porous wet curtain, water circulation system, fan. When the unsaturated air flows through the porous, wet curtain surface, a large amount of water evaporates, and the sensible heat reflected by temperature in the air is converted to the latent heat of evaporation, thus reducing the temperature of the air itself. When the fan draws air, the cold air cooled by the wet curtain is continuously introduced into the room, so as to achieve the cooling effect.
2, the cooling of the wet curtain fan is to use the circulating water pump continuously to draw out the water in the water tray, and spray evenly on the evaporation filter layer through the water distribution system, so that the outdoor hot air through the evaporation heat exchanger (evaporation wet curtain) and water heat exchange, through the water evaporation and cooling, cool, clean air is pressurized into the room by the low noise fan. To achieve a cooling effect.
Two, humidification system:
As a humidifying medium, wet curtain is used in plantations, greenhouses and other special industries with high humidity requirements. Because the wet curtain has the characteristics of water absorption, water resistance, fast diffusion speed and lasting efficiency, it is very suitable for regulating indoor humidity.
Three, filtration system:
Wet curtain also has ventilation, breathable and corrosion resistance. It has excellent filtration effect on dirt and dust in the air. It is a non-toxic and odorless environmental protection material for clean humidification and oxygen cooling, so it is also used as a medium for air purification and filtration.
