Durable Broiler Flat Raising Qatari Broiler Project
Product description broiler flat raising:

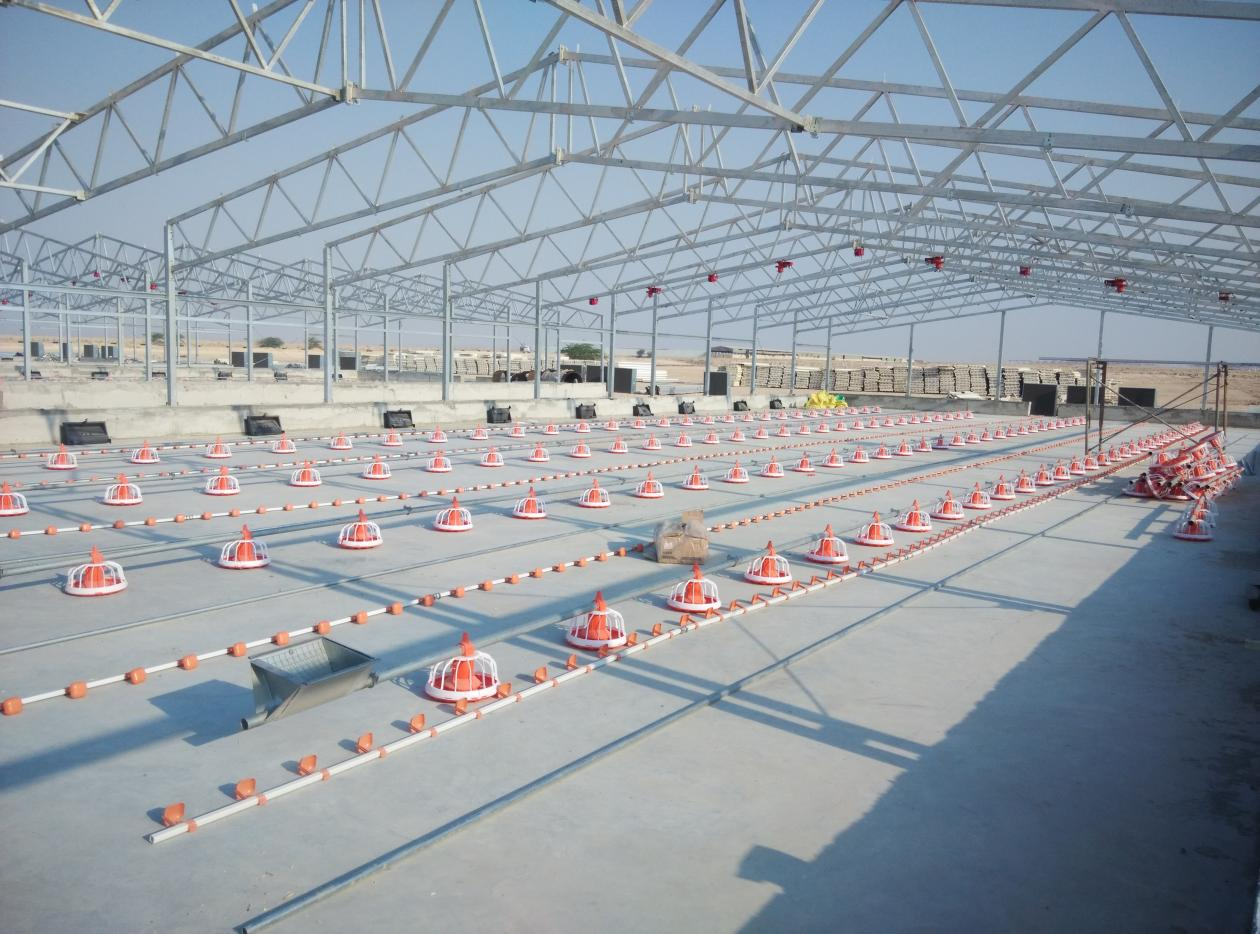

Prefabricated steel structure chicken house is a new type commercialpoultry housing that built with steel structure house building and full automatic equipments.
Introduction of broiler flat raising:

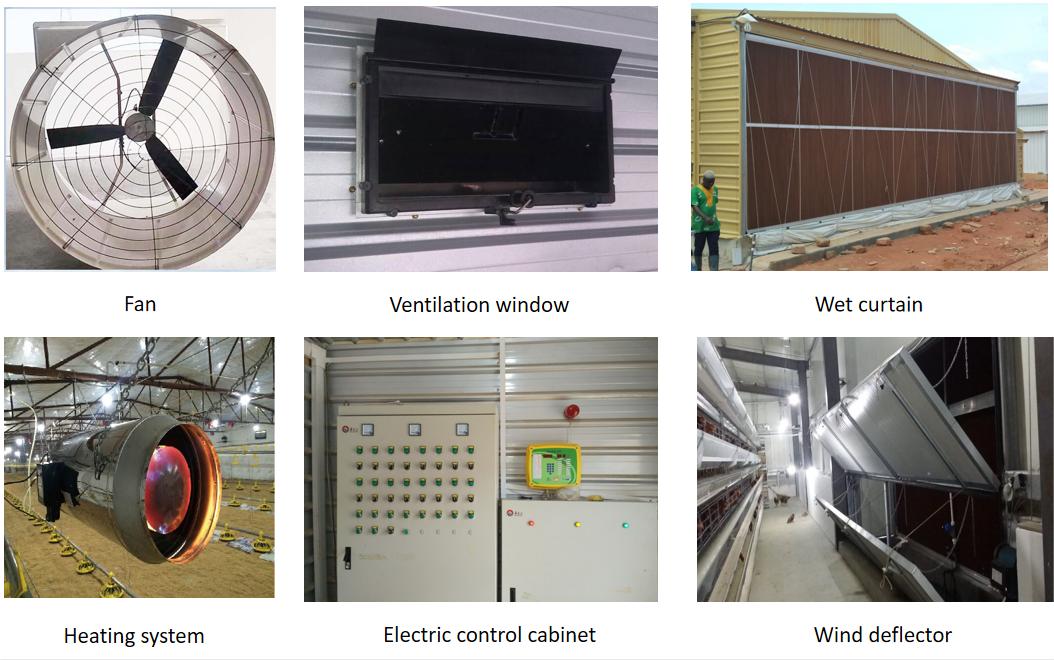

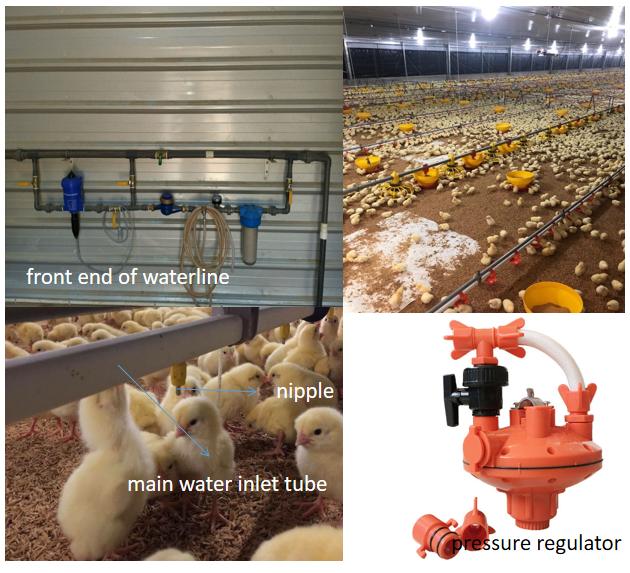

1. Floor Raising System,also named Deep Litter System consist of Automatic Pan Feeding System,Automatic Drinking System, Ventilation system,Environment control system,Cooling pad & heating system,provides better living environment for broilers and pullets.
2. Generally the height of poultry houses is between 2.5m-3.5m (at eaves). The width of the poultry houses is decided according to then layout of equipment inside and cannot be too large considering ventilation. Steel structure poultry houses are usually designed with the width of 8-15m. Length is better no larger than 140m.

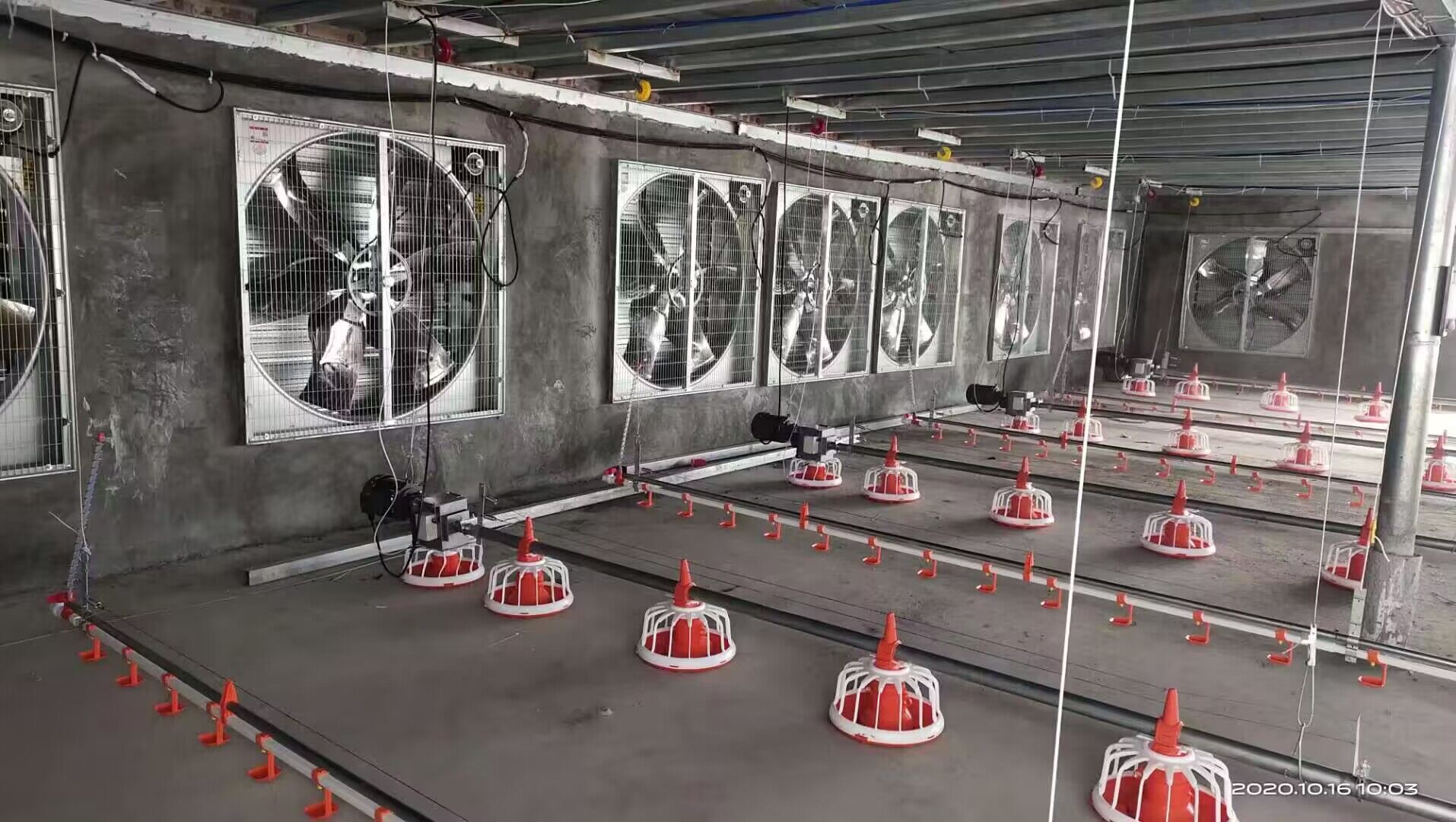

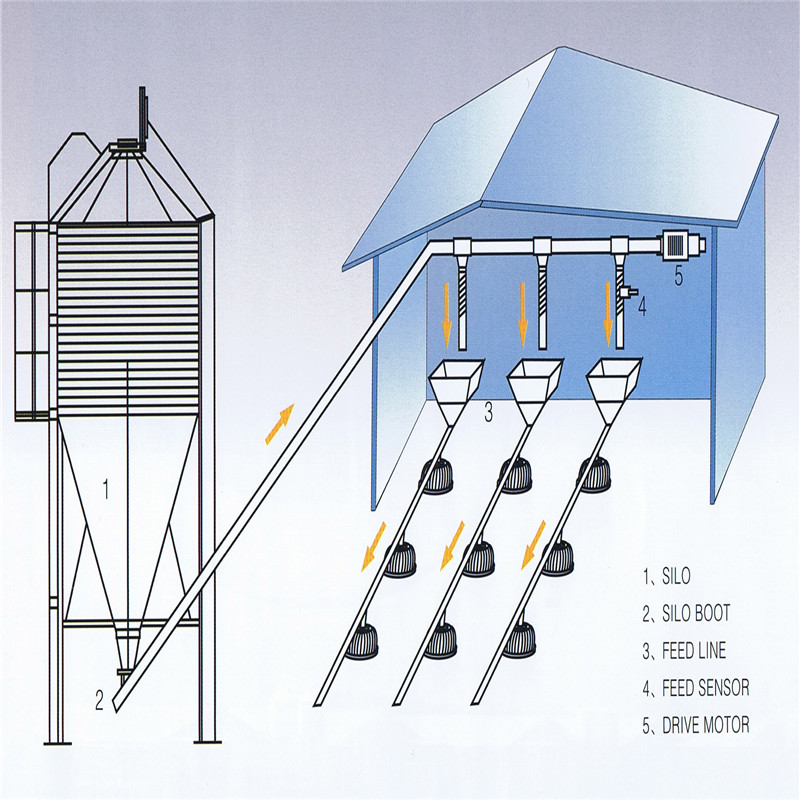

Automatic feeding system of broiler flat raising:
1.The equipment is used for feeding system for broiler.The pan is very safe and easy .
2.Its color is yellow and red .Automatic control for feed quantity adjustment with 5 levels .
3.The pan can store 800g-1600g feed stuffs .It can suffice any time of rearing.
4.The design of feed pan edge can avoid the feedstuffs wasting.
5.The design of incline from the edge to center can make the feed stuffs uniform distribution.
6 .It`s convenient for broiler feed.
Feed Pan Feature of broiler flat raising:
Pan diameter 330mm
Pan material: 100% virgin PE material
With anti- UV additive
Feed capacity: 55 birds/ pan
Pan bottom can use as starter pan
Pan use: starting from 1-day age.
Cleaning :hang dry, wash by high pressure water,easy cleaning.
Bottom shape : wave-shape bottom and flat bottom are all available to choose.
